Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Circuit Breakers Behind left kick panel, above diode pact. See Figure .
Fuse/Relay Block Behind left kick panel. See Figure .

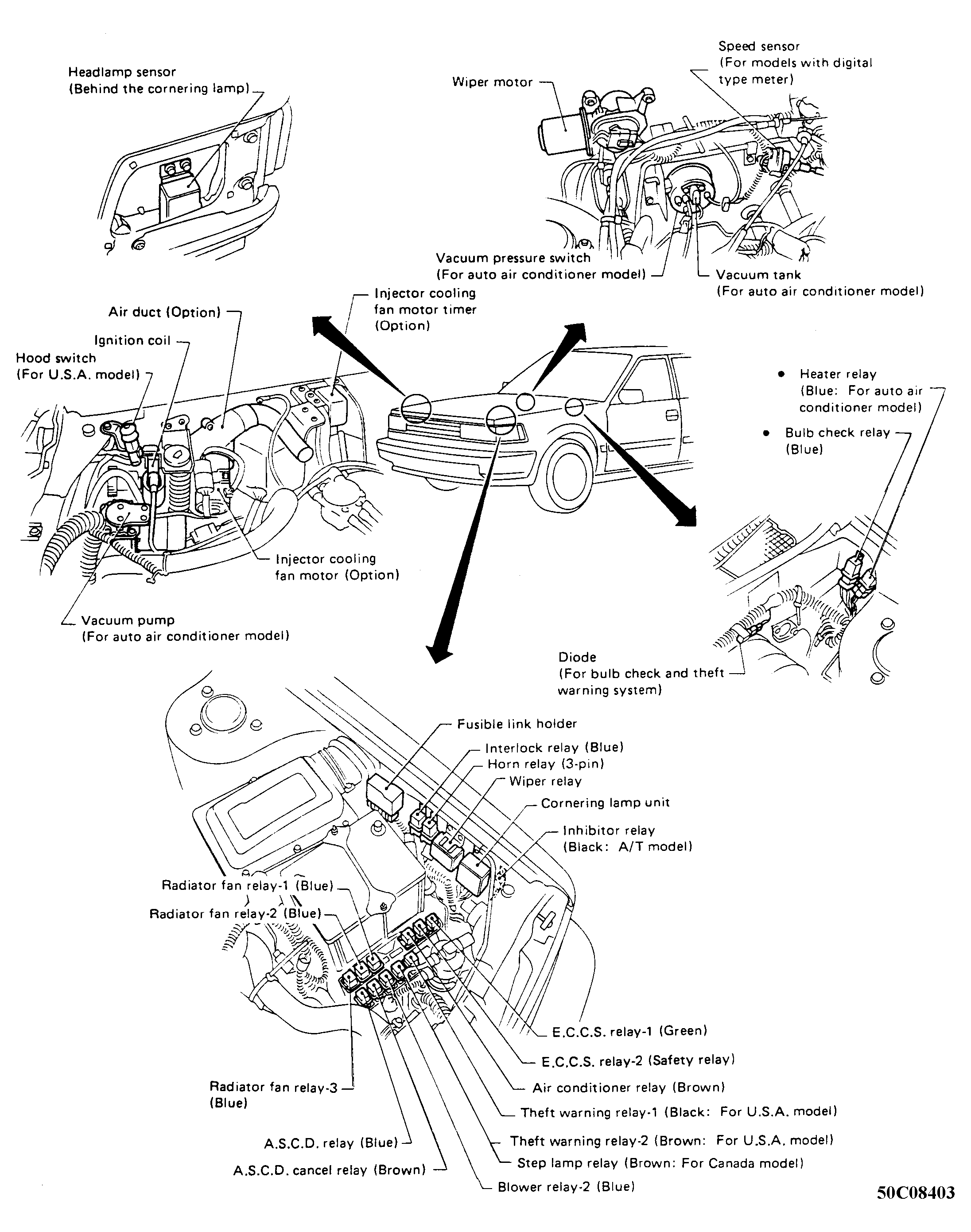

Fusible Links On left front inner fenderwell, in front of air cleaner. See Figure .
Power Door Lock Circuit Breaker Under dash, on right kick panel.
Power Window Circuit Breaker On right kick panel.
