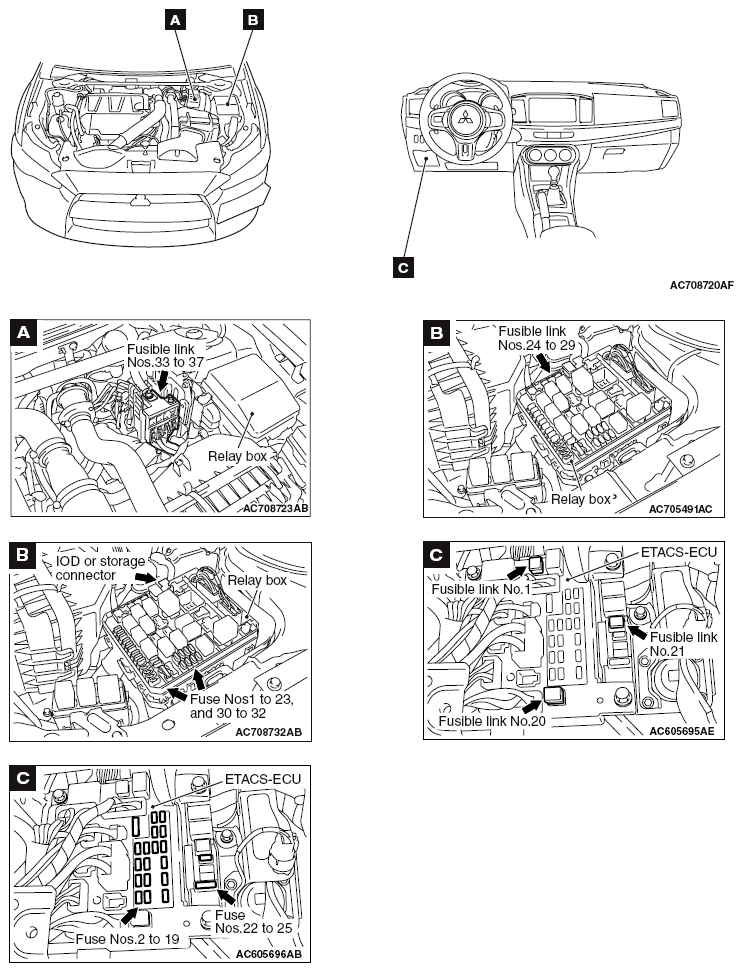

Fusible Link, Fuse And IOD Or Storage Connector
| Name | Symbol |
|---|---|
| Fuse Nos.1 to 23 and 30 to 32 (Relay box in engine compartment) | B |
| Fuse Nos.2 to 19 and 22 to 25 (Passenger compartment) | C |
| Fusible link Nos.1, 20 and 21 (Passenger compartment) | C |
| Fusible link Nos.24 to 29 (Relay box in engine compartment) | B |
| Fusible link Nos.33 to 37 (Engine compartment) | A |
| IOD or storage connector | B |
