INSPECTION PROCEDURE 10: The Windshield Washer Does Not Work Normally: Notes

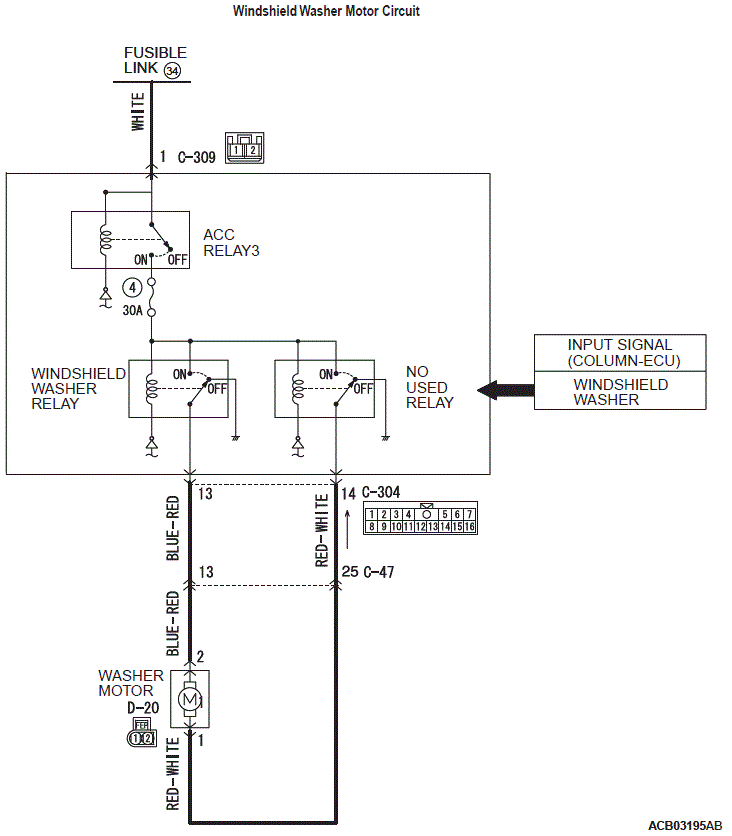

Fig 1: Windshield Washer Motor Circuit Diagram
G00540179Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

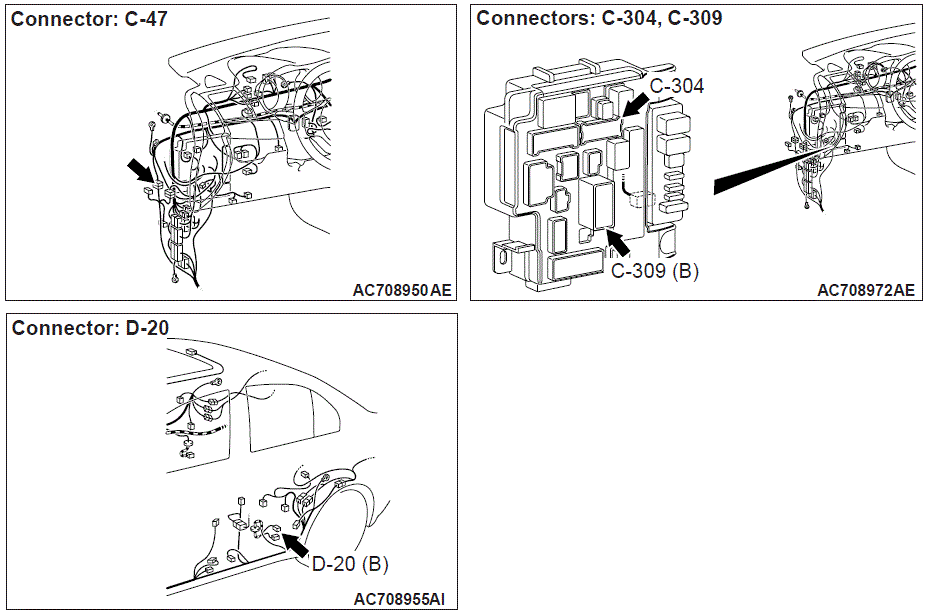

Fig 2: Connector C-47, C-304, C-309 & D-20 Locations
G00540180Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
