Power Window Relay Check

POWER WINDOW RELAY CHECK CHART

BATTERY VOLTAGE TESTER CONNECTION SPECIFIED CONDITION
Not applied 4 -5 Open circuit
  • Connect terminal No. 1 and the positive battery terminal.
  • Connect terminal No. 3 and the negative battery terminal.
 Less than 2 ohms

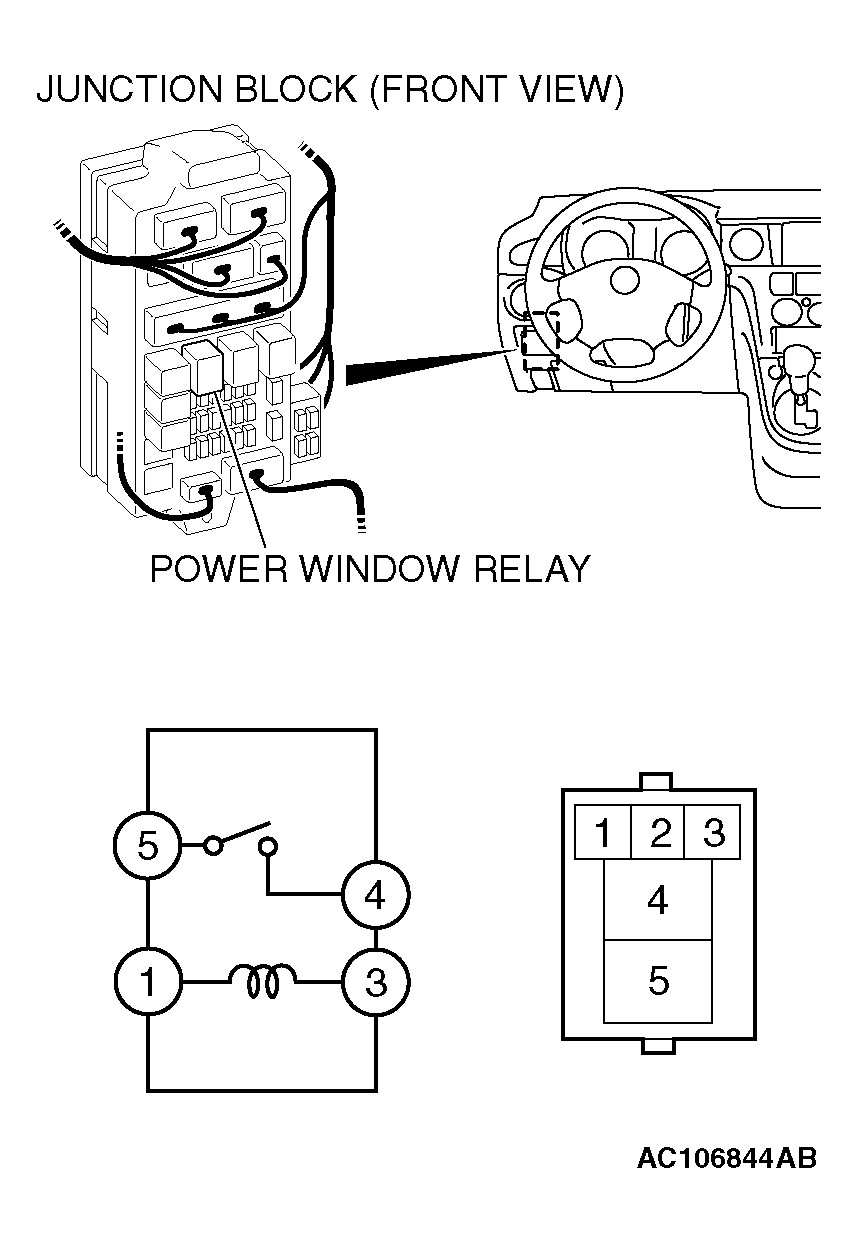

Fig 1: Identifying Power Window Relay
G04304090Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
