Removal And Installation < 3.8L Engine >: Notes

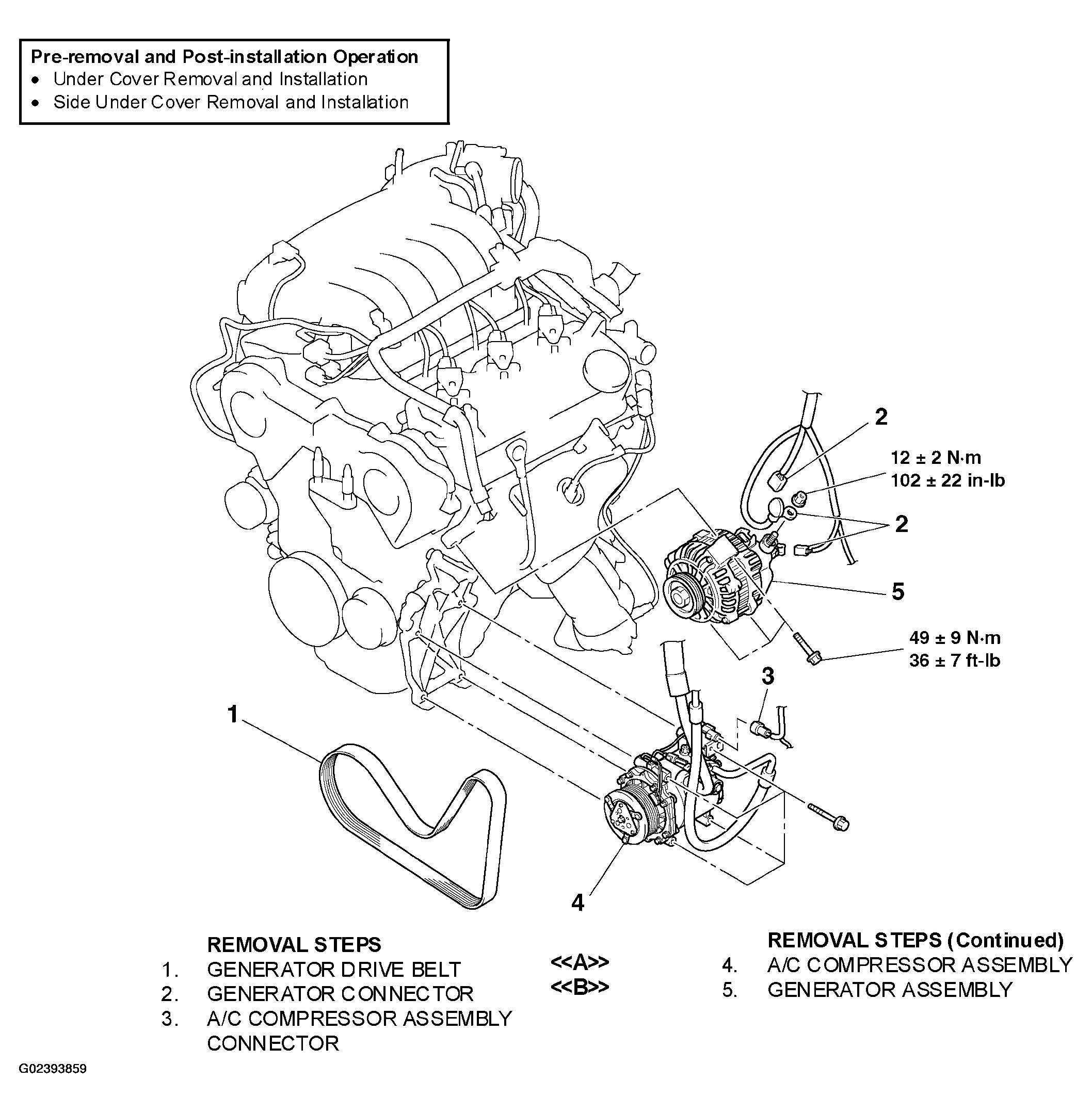

Fig 1: Removing And Installing Generator Assembly (3.8L Engine)

G02393859

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
