DTC P0461: Fuel Level Sensor Circuit Range/Performance (Fwd): Operation

The fuel gauge drive signal is input in PCM (terminal No. 60). See Fig 1 . For component and connector locations, see Fig 2 .

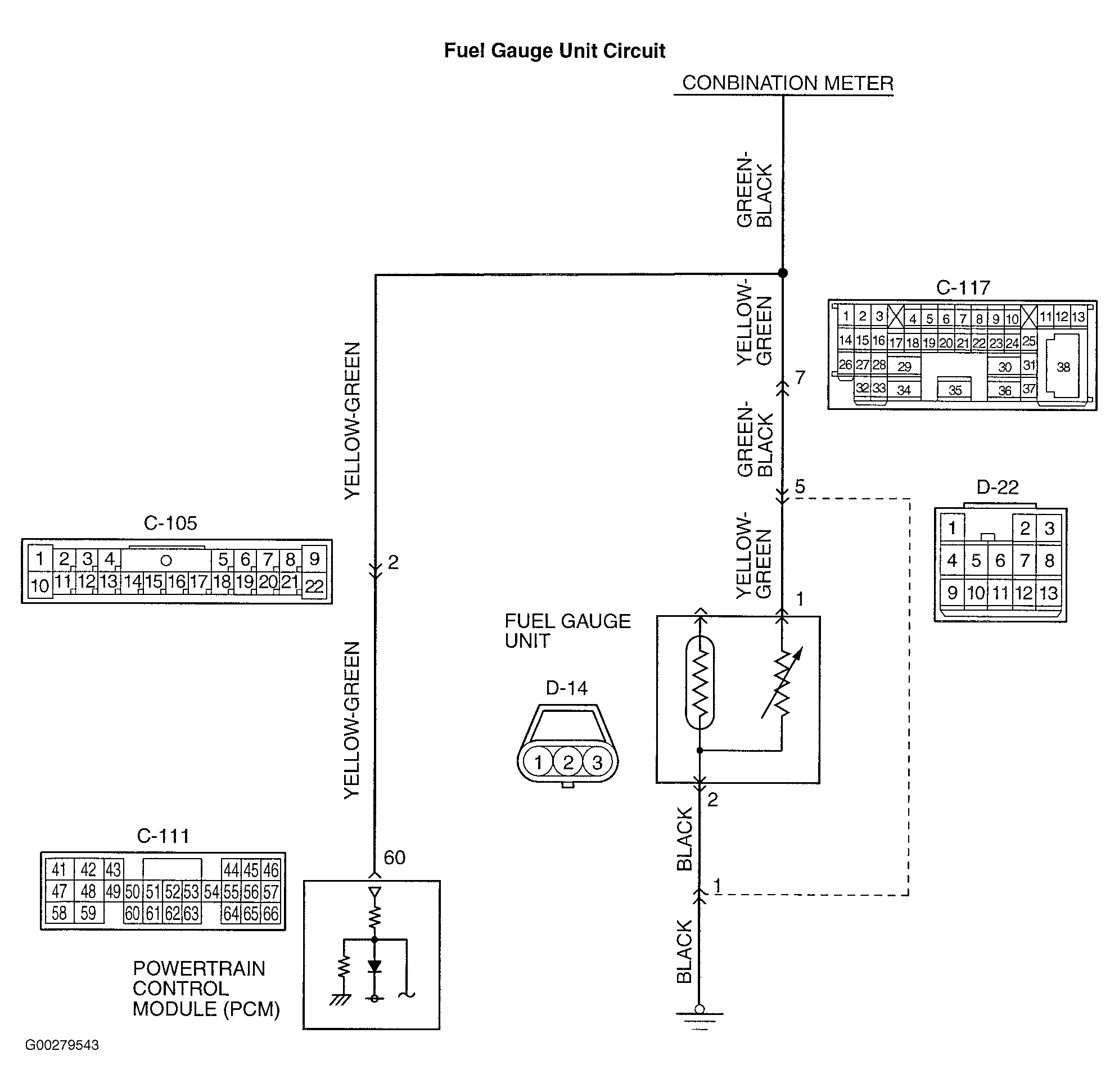

Fig 1: Fuel Level Sensor Circuit Wiring Diagram (FWD)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

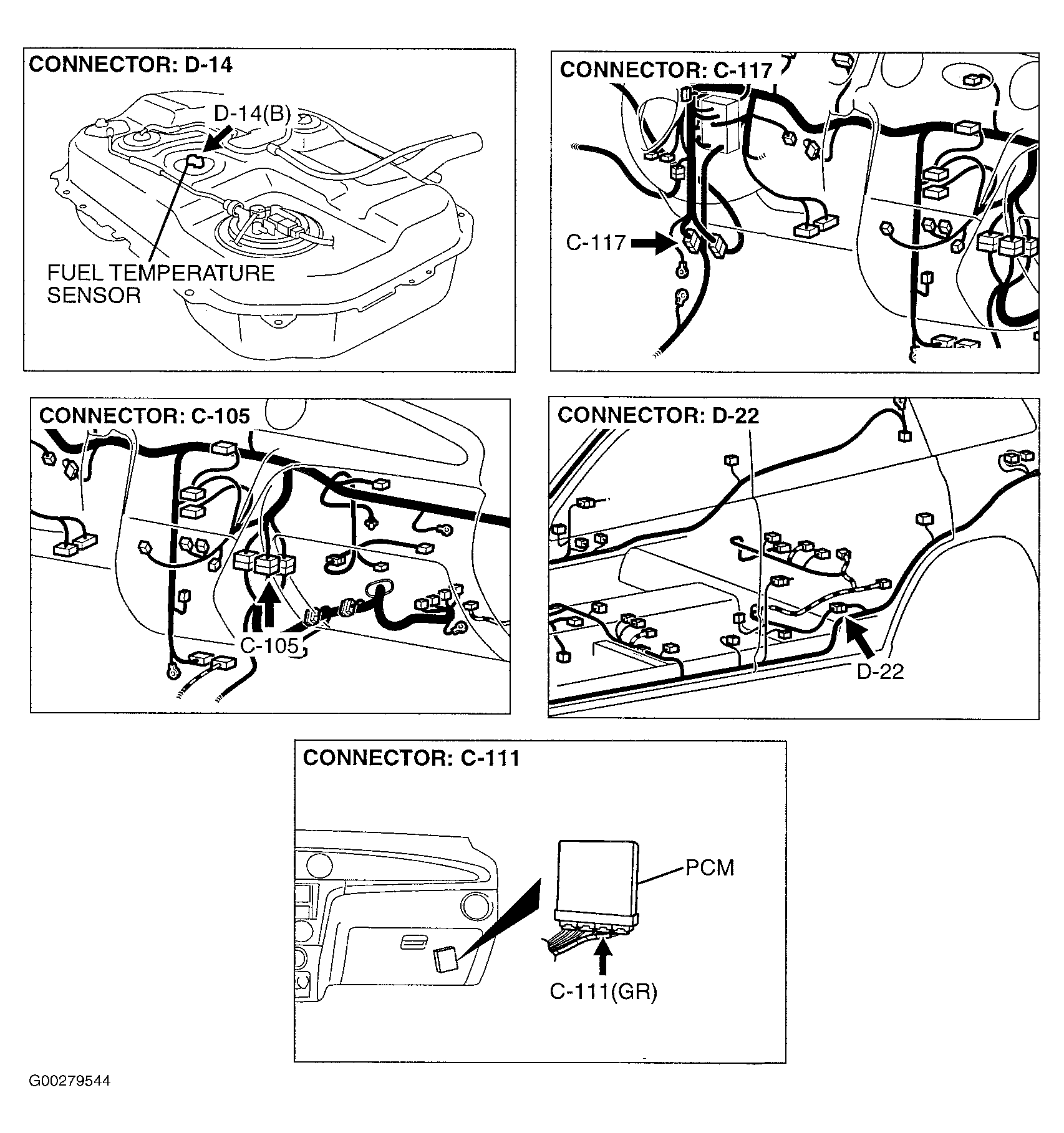

Fig 2: Locating Fuel Level Sensor Circuit Connectors & Components (FWD)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
