Installing the oil-level sensor

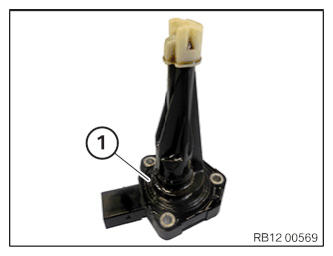

- Replace sealing ring (1)
.
Parts: Sealing ring
- Clean sealing surface on oil sump.

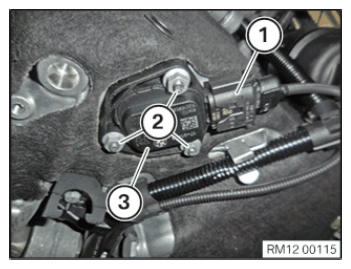

- Insert and install the oil-level sensor (3) .
- Tighten nuts (2)
.TIGHTENING TORQUES SPECIFICATIONS
Oil level sensor to oil sump M6 Joining torque 2 Nm Tightening torque 8 Nm - Connect the connector (1) and audibly lock it.
Follow-up work
- Refer to TIGHTENING THE OIL DRAIN PLUG .
- Refer to INSTALLING THE FRONT UNDERBODY PROTECTION WITH THE STIFFENING PLATE .
- Refer to TOPPING UP THE MOTOR OIL .
- Refer to INSTALLING THE OIL FILLER CAP .
