61 13... In-line connectors, 24-/44-pin, Hybrid System MQS/MPQ

Manufactured by AMP: The following contact types without single conductor seal can be fitted in the connector housings:

Socket housing:

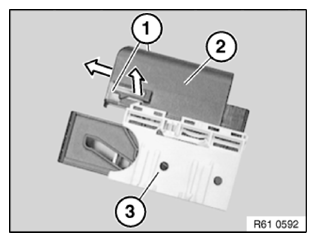

Press locks (1) on protective cap (2) upwards on both sides.

Detach protective cap from contact carrier (3).

NOTE: Detaching the protective cap releases the secondary locks of the socket contacts.

Fig 1: Detaching Protective Cap From Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

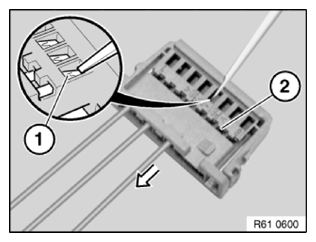

Hold down safety catch (1) of contact bushing in opening of contact carrier with a small screwdriver.

Pull wire with contact bushing in arrow direction as far as secondary lock (2).

Fig 2: Pulling Wire With Contact Bushing

Courtesy of BMW OF NORTH AMERICA, INC.

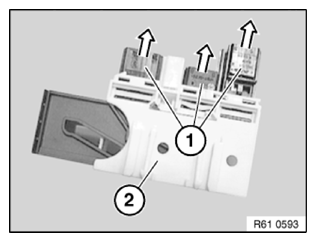

Hold down snap-in hooks in secondary lock (1) again and pull cable with contact bushing (2) completely out of contact carrier (3).

Fig 3: Holding Down Snap-In Hooks In Secondary Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Pin housing:

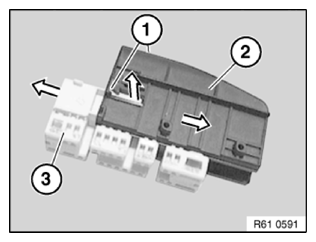

Press locks (1) on protective cap (2) upwards on both sides.

Detach protective cap from housing carrier (3).

NOTE: Detaching the protective cap releases the secondary locks of the pin contacts in the contact carriers.

Fig 4: Pressing Locks On Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Pull contact carrier (1) out of housing carrier (2).

The pin contacts are pulled out of a contact carrier as described under "Socket housing".
