61 34... Removing and installing/replacing the power socket in the center console (center rail)

Special tools required:

Lever the lid (1) out of the rear center console cover (2) with the special tool 64 1 020 .

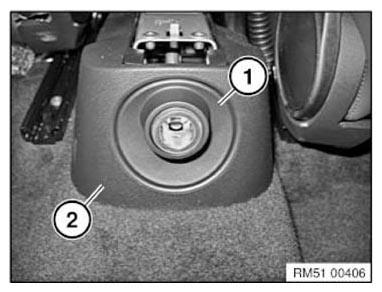

Fig 1: Identifying Center Console Lid And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Pull the function carrier with power socket (2) out of the trim panel in direction of arrow.

Detach plug connection behind plate.

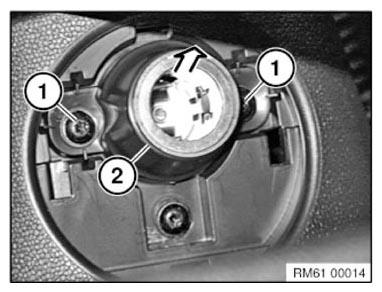

Fig 2: Removing Center Console Function Carrier With Power Socket

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Power socket is shown removed for purposes of clarity.

Replacement:

Unlock the latch mechanisms (1) with a suitable tool and press the power socket (2) out of the function carrier.

Fig 3: Identifying Power Socket And Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Latch mechanisms (1) on power socket (2) must not be damaged.

Release latch mechanisms (1) using a suitable tool and slide power socket (2) in the direction of arrow out of the illuminated ring (3).

Installation note:

Latch mechanisms (1) on illuminated ring (3) must not be damaged.

Make sure power socket (2) is fitted correctly in illuminated ring (3).

Fig 4: Removing Socket Out Of Socket Receptacle

Courtesy of BMW OF NORTH AMERICA, INC.
