61 35 001 Removing and installing (replacing) trailer module
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic discharge (ESD PROTECTION) .
Necessary preliminary tasks:
Release plastic nuts (1).
Feed out equipment holder (2) in direction of arrow.
Installation note:
Make sure equipment holder (2) is correctly seated.

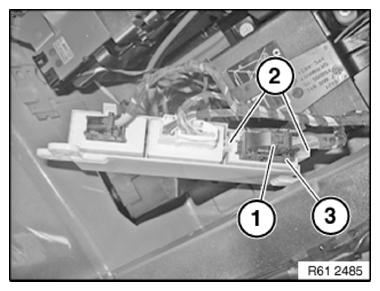

Unfasten plug connection (1) and disconnect.
Unlock retaining lugs (2).
Pull trailer module (3) up and out.
Installation note:
Ensure trailer module (3) is seated correctly.
Replacement:
Carry out VEHICLE PROGRAMMING/ENCODING .
