13 62 010 Removing and installing/replacing differential pressure sensor (N52 / N52K / N51)

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2010 BMW 528xi, 2010 BMW 528i, 2009 BMW 528xi, 2009 BMW 528i, and 2008 BMW 528xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

E90 / E91 / E92 / E93 / E87 / E82 / E88:
Remove lower section of microfilter housing
E85 / E86 E90 / E91 / E92 / E93:
Remove left tension strut on suspension strut dome
E70:
Remove intake filter housing

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection) .

Release screws.

Unlock plug (1) and remove.

Pull differential pressure sensor (2) out of intake air manifold.

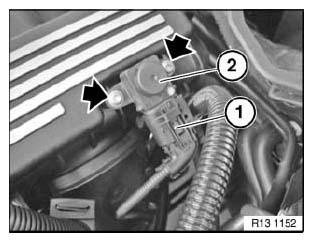

Fig 1: Locating Differential Pressure Sensor And Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Read out fault memory of control unit of Digital Engine Electronics (DME).

Check stored fault message.

Now clear the fault memory.
