Securing Engine In Installation Position With Special Tool

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2007 BMW M6, 2007 BMW 650i, 2006 BMW M6, 2006 BMW 650i, and 2005 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see SPECIAL TOOLS - 6-SERIES .

Special Tools Required:

00 0 200
00 0 201
00 0 202
00 0 203
00 0 204
00 0 208
11 0 020

Necessary Preliminary Tasks:

Remove acoustic cover.
Move engine hood into service position. Refer to 51 00 ... SERVICE POSITION OF ENGINE HOOD .
Remove air filter housing.
Remove microfilter. Refer to 64 31 061 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT MICROFILTER HOUSING LOWER SECTION .
Remove tension strut on spring strut dome. Refer to 51 71 373 REMOVING AND INSTALLING/REPLACING TENSION STRUT ON SPRING STRUT DOME .
Release servo fluid reservoir and place to one side.

Assemble special tool 00 0 200 with special tools 00 0 201 / 00 0 202 / 00 0 203 / 00 0 204 / 00 0 208 and fit.

Secure special tool 11 0 020 to front and rear lifting eyes (1) and to special tool 00 0 200.

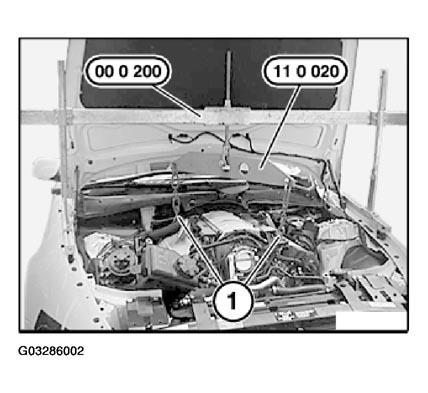

Fig 1: Locating Front And Rear Lifting Eyes

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Supports (1) of special tool 00 0 208 must rest on screw connection (2) of both side panels (risk of damage).

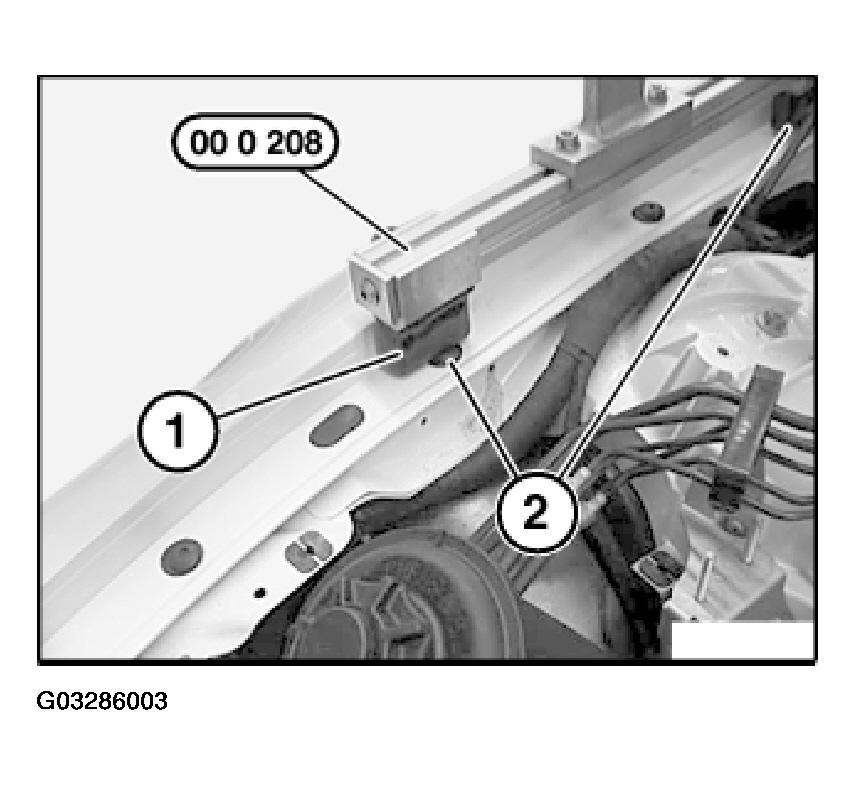

Fig 2: View Of Cross Member Support Aligned On Screw Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screws (1 and 2).

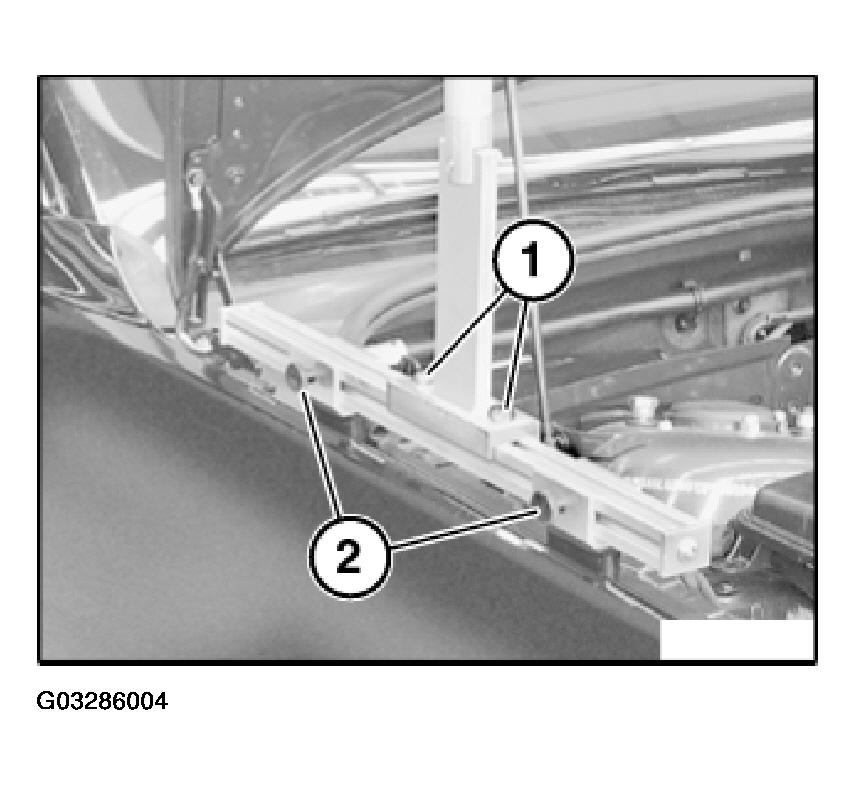

Fig 3: Tightening Screws In Cross Member Support

Courtesy of BMW OF NORTH AMERICA, INC.

Release engine mounts at top left and right.

Raise engine with special tool 00 0 200 approx. 10 mm.

Fig 4: Releasing Engine Mounts At Top Left And Right
