31 2 310 Extractor
WARNING: This page is about a different car, the 2006 BMW 330xi, 2006 BMW 330i, 2006 BMW 325xi, 2006 BMW 325i, and 2006 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools
Note: For pressing steering tie rod off wheel carrier.
Series: E60, E61, E83, E90, E91, E92, R56
SI number: 01 23 06 (308)
Order number: 31 2 310
Extractor

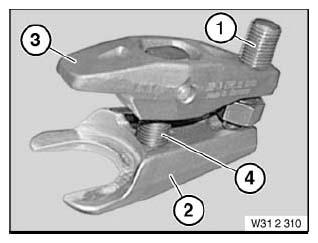

Consisting of:
1 = 31 2 311 Pressure bolt
2 = 31 2 312 Lower section
3 = 31 2 313 Upper section
4 = 31 2 314 Spindle and dowel pin
