31 2 300 Extractor
WARNING: This page is about a different car, the 2006 BMW 330xi, 2006 BMW 330i, 2006 BMW 325xi, 2006 BMW 325i, and 2006 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools
Note: For pressing steering tie rod off wheel carrier.
Series: E60, E61, E83, E90, E91, E92
Storage location: C48
SI number: 1 24 03 (040)
Order number: 31 2 300

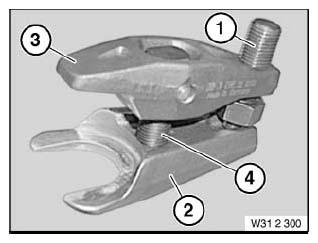

Extractor
Consisting of:
1 = 31 2 301 Pressure bolt
2 = 31 2 302 Lower section
3 = 31 2 303 Upper section
4 = 31 2 304 Spindle and dowel pin
