32 41... Instructions for removing and installing ear clips

Special Tools

• 32 1 260

Note:

The work steps are show on assorted components.

Ear clip must always be replaced.

To remove an ear clip, place special tool 32 1 260 at right angles to ear and cut ear open.

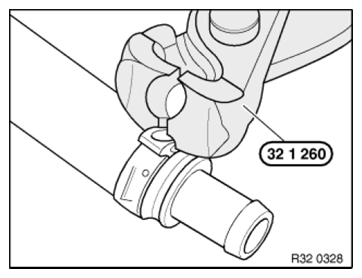

Fig 1: Cutting Ear Clamp With Special Tool (32 1 260)

Courtesy of BMW OF NORTH AMERICA, INC.

The ear clip can be fitted not only axially but also radially after the hook fastener has been opened.

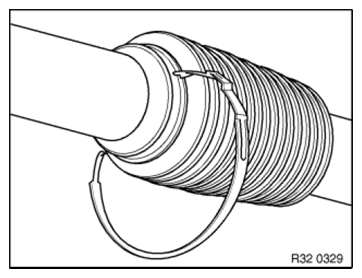

Fig 2: Identifying Ear Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Attach hook fastener and press ear together with special tool 32 1 260 .

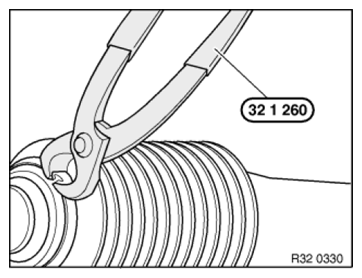

Fig 3: Pressing Lock Hook And Ear With Special Tool (32 1 260)

Courtesy of BMW OF NORTH AMERICA, INC.

The diagonal cutting pliers of special tool 32 1 260 can be used in areas which are difficult to access.

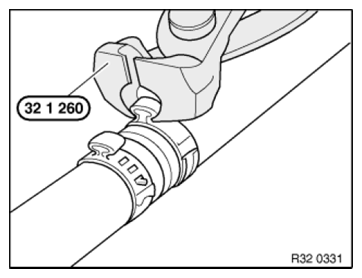

Fig 4: Cutting Side Edge With Special Tool (32 1 260)

Courtesy of BMW OF NORTH AMERICA, INC.

Warning

Gap (A) max. 1 mm!

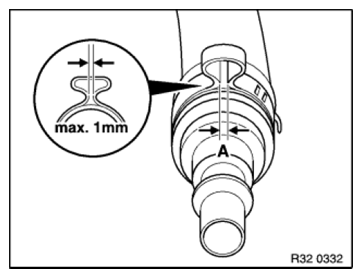

Fig 5: Identifying Ear Clip Gap Dimensions
