Power Steering Fluid Reservoir: Notes

Material

Item	Specification
MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX (US); XT-2-LM12 (Canada)	MERCON®

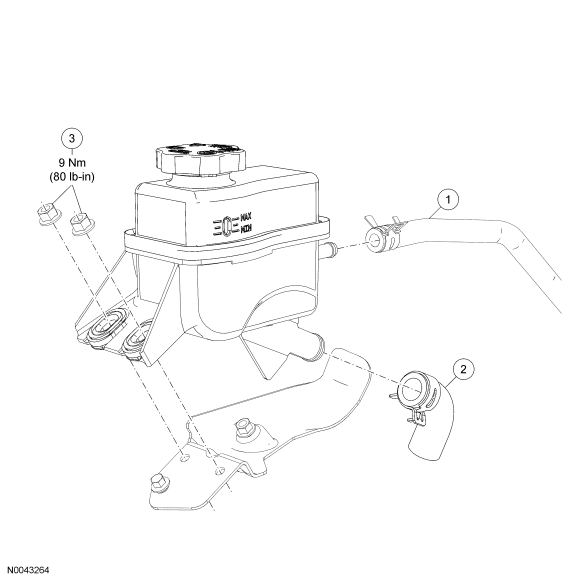

Fig 1: Exploded View Of Power Steering Fluid Reservoir With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3493	Power steering fluid cooler-to-reservoir hose
2	3E525	Power steering fluid pump supply hose
3	W520111	Power steering fluid reservoir nuts (2 required)
