Steering Column

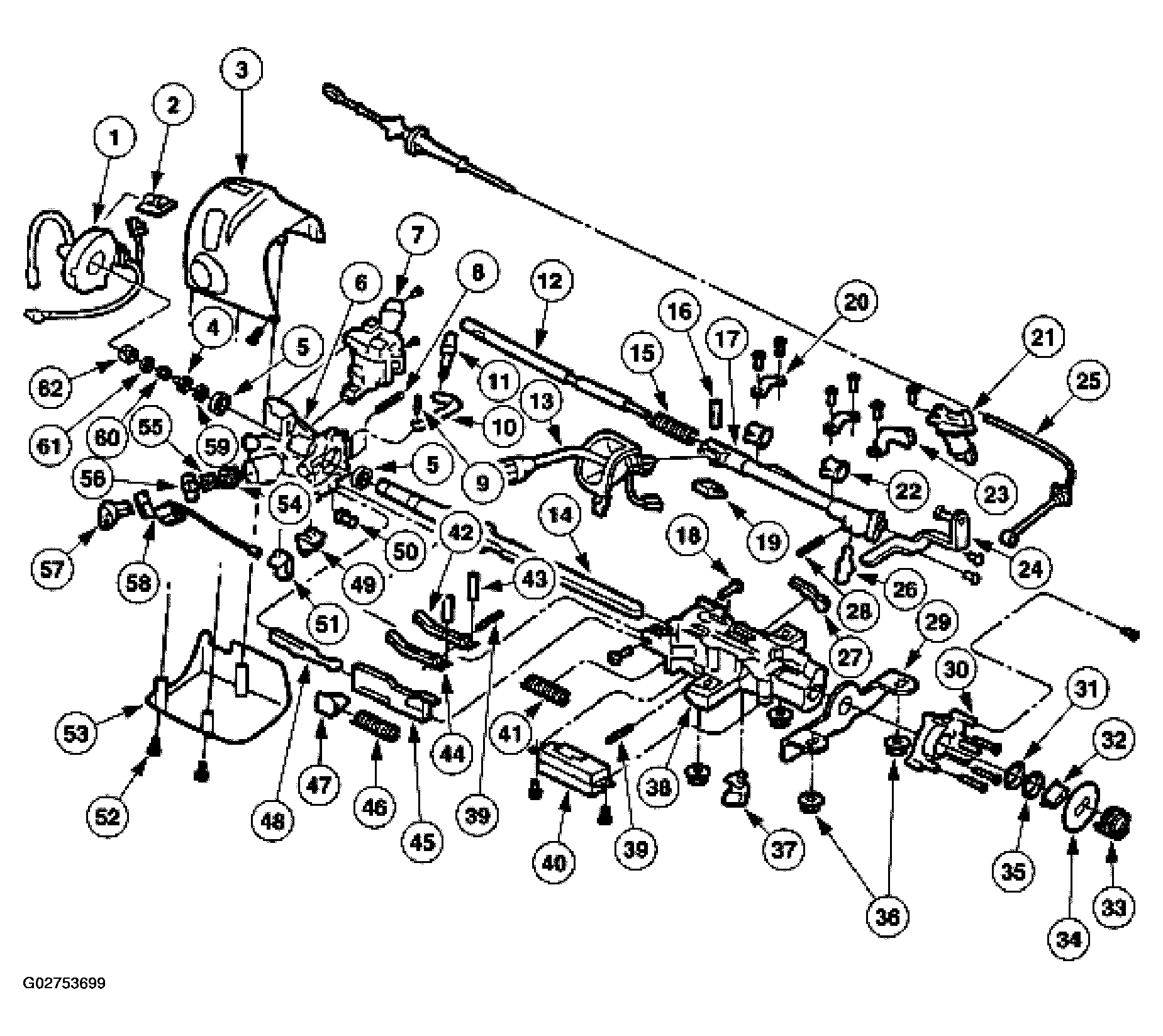

Fig 1: Identifying Steering Column Components
G02753699Courtesy of FORD MOTOR CO.

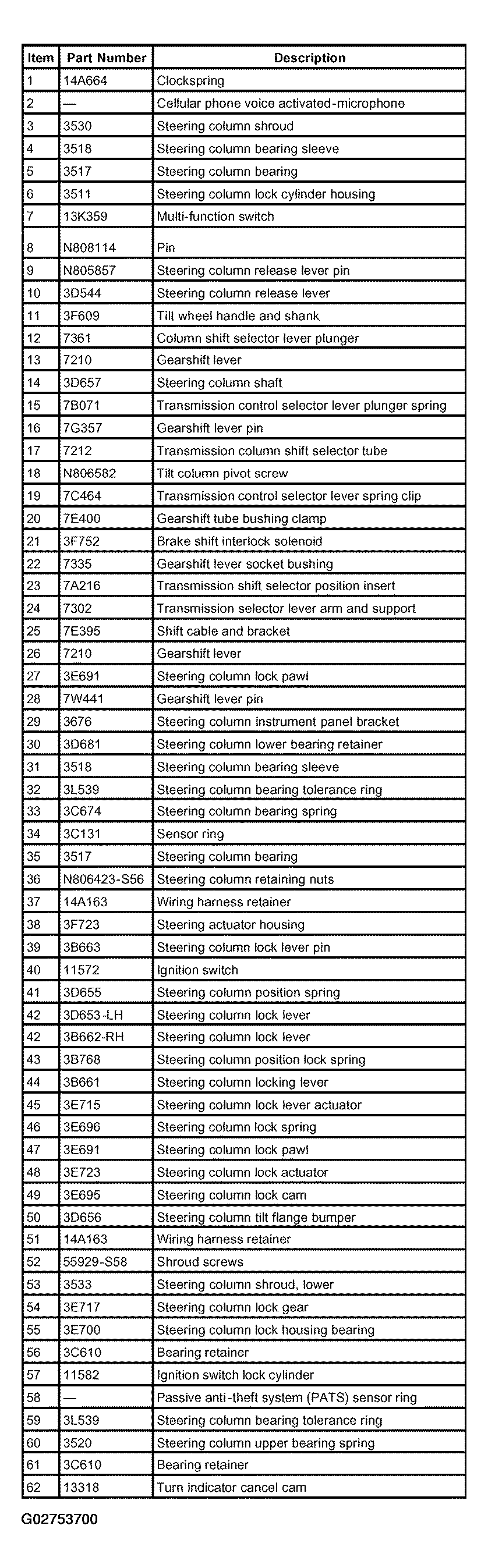

Fig 2: Part Description Chart (Items 1-62)
G02753700Courtesy of FORD MOTOR CO.

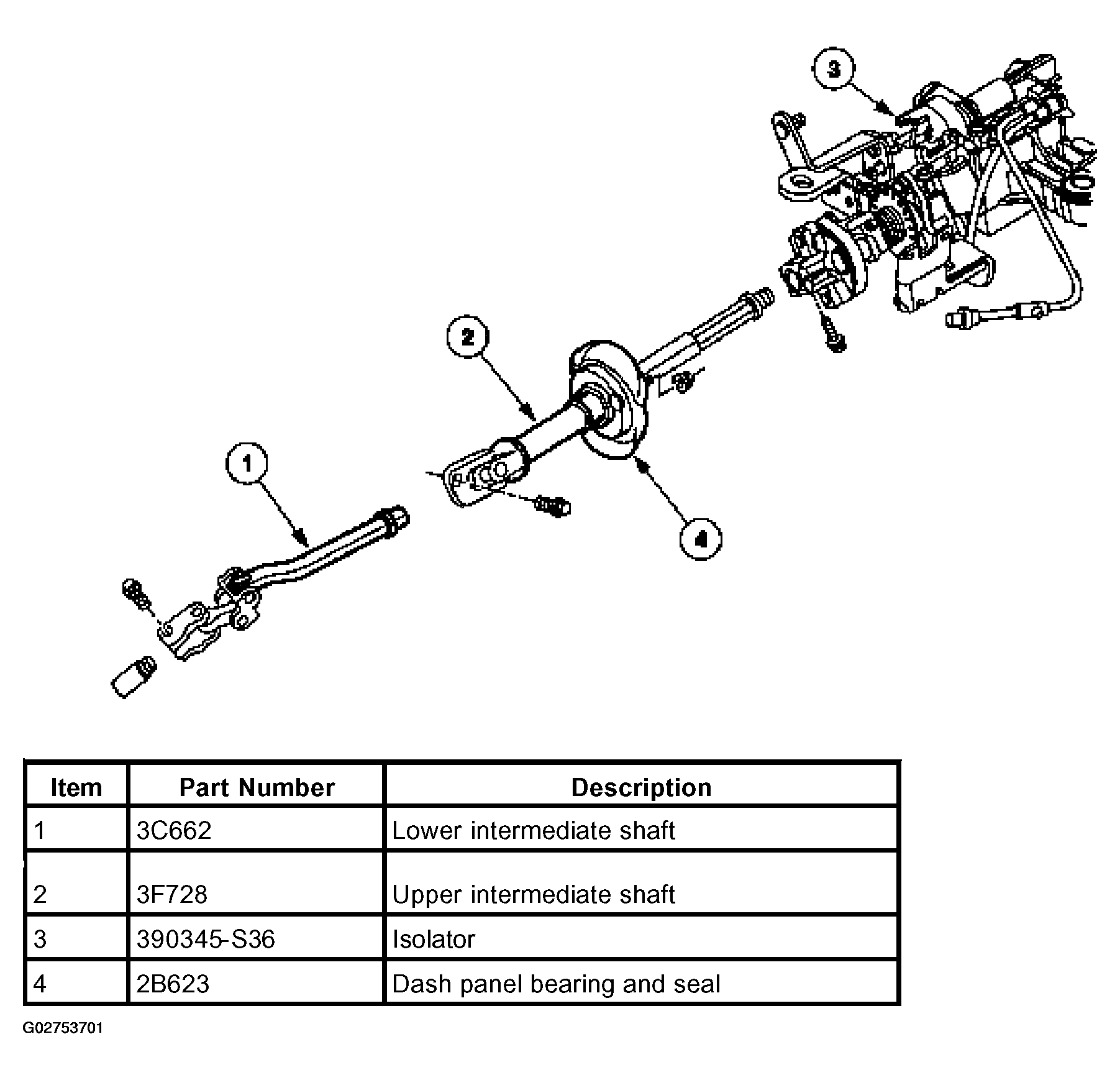

Fig 3: Identifying Intermediate Shaft Components
G02753701Courtesy of FORD MOTOR CO.
