Power Mirrors: Wiring Diagram

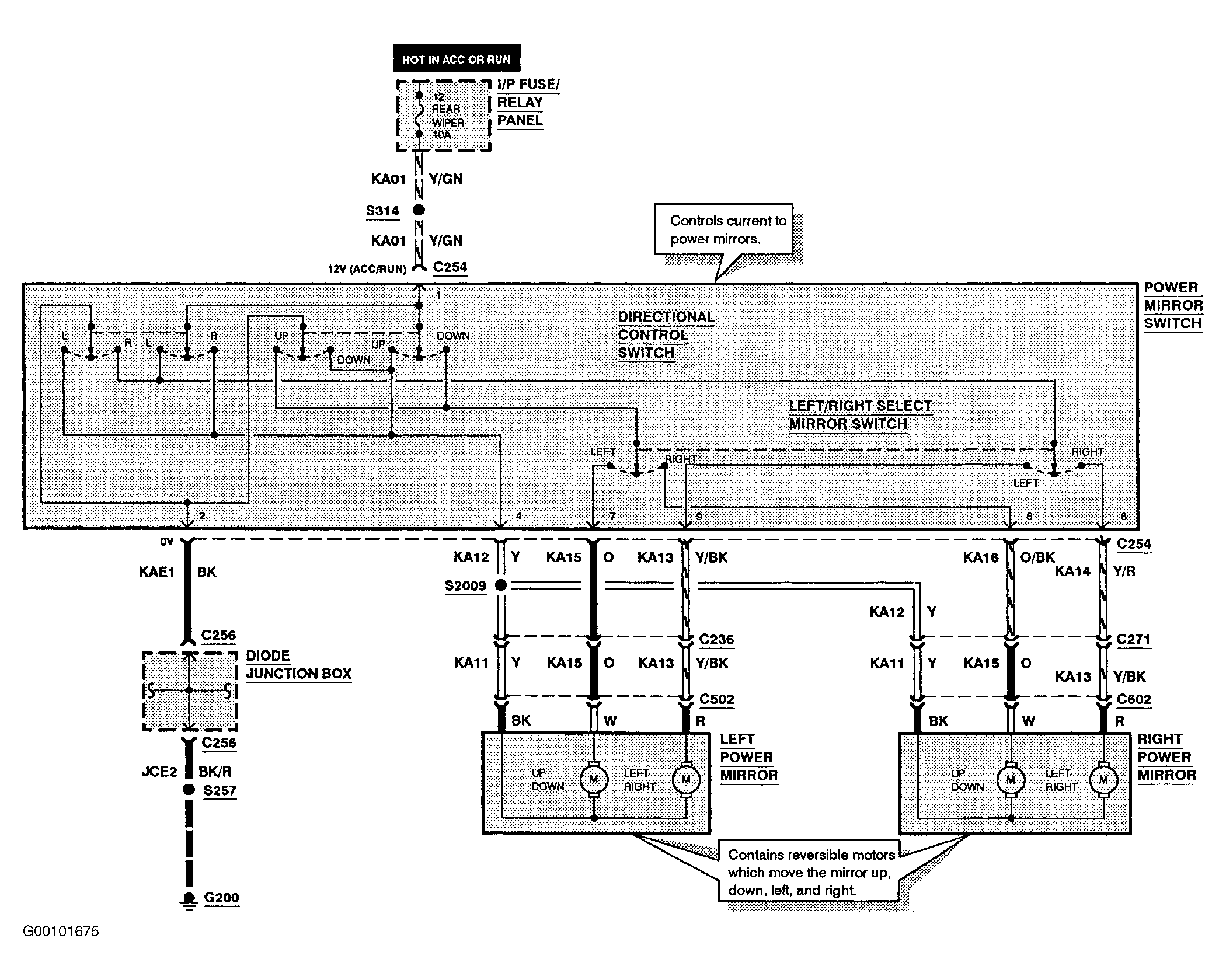

Fig 1: Power Mirror Wiring Diagram

G00101675

Courtesy of FORD MOTOR CO.

Fig 2: Joint Connector No. 1 Terminal Identification

G00101188

Courtesy of FORD MOTOR CO.
