Air Outlet Temperature Sensor: Removal
WARNING: This page is about a different car, the 2004 Dodge Sprinter. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the battery negative cable.
- Remove the heater-A/C control from the instrument panel (Refer to REMOVAL
).

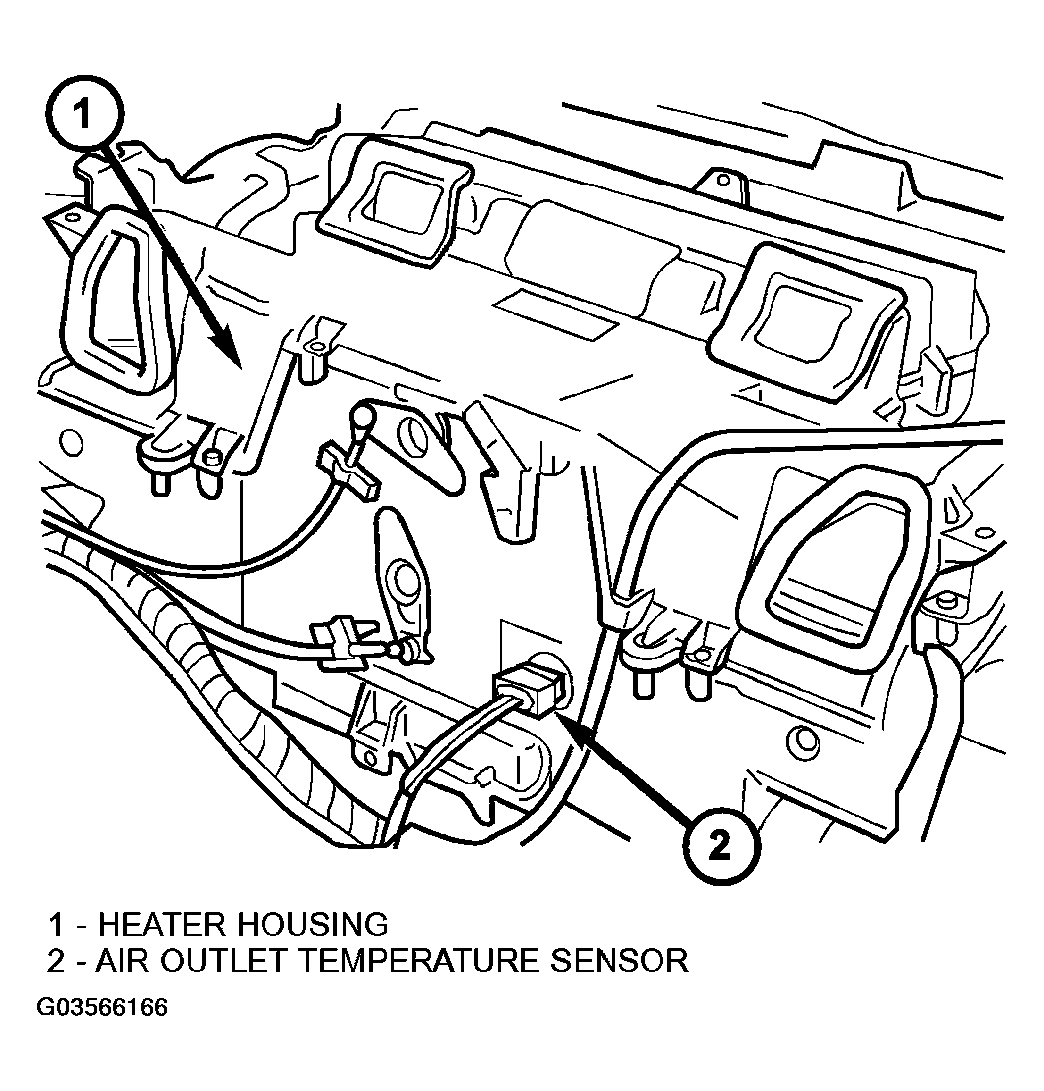

- Disconnect the wire harness connector from the air outlet temperature sensor (Fig 1
).
- Remove the air outlet temperature sensor from the heater housing.
Courtesy of DAIMLERCHRYSLER CORP.
