Remove Driver Side Strut Tower Bar: Notes

1. Remove using the procedure shown in the figure below.
   • the figure below shows the left side (same as right side).

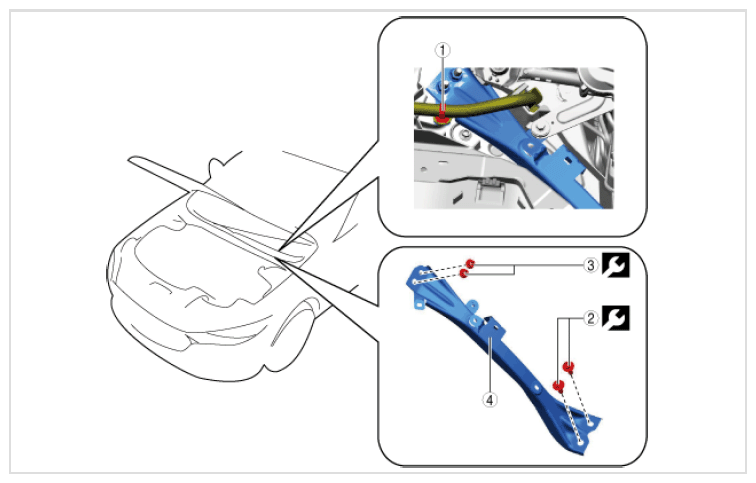

Fig 1: Driver Side Strut Tower Bar Bolt And Nut With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Step	Part name
1	Wiring harness clip (See Wiring harness clip removal note ).	-
2	Bolt	35 N.m {3.55 kgf.m, 25.8 ft.lb}
3	Nut	35 N.m {3.55 kgf.m, 25.8 ft.lb}
4	Strut tower bar	-
