Power Seat Switch Inspection
WARNING:
- Handling a front seat equipped with a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the Service Information before handling the front seat (side air bag integrated). (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
- Disconnect the negative battery terminal and wait for 1 min. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
- Remove the power seat switch. (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION [(US)] .)

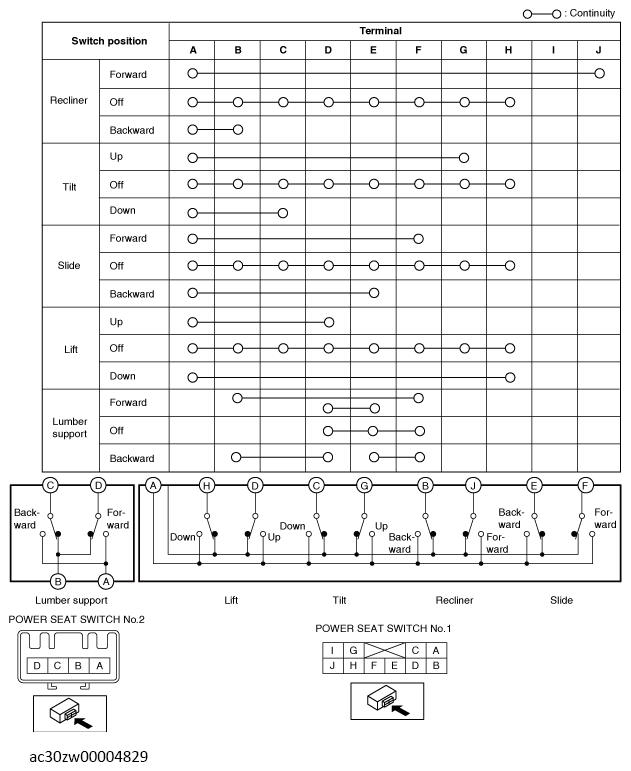

- Verify that the continuity between the power seat switch terminals is as indicated in the table.
- If not as specified, replace the front seat. (See FRONT SEAT REMOVAL/INSTALLATION [(US)] .)
