Power Door Lock System (Using M-MDS)

Connect the M-MDS to DLC-2.
After the vehicle is identified, select the following items from the initial screen of the M-MDS.
- Select the "Module Programming".
- Select "Programmable Parameters".
- Select menu in the R_BCM.

Select an item name, and then select option.

M-MDS display	Function	Setting contents	Control unit
Auto Door Lock Mode.	Auto door lock function can be changed.	OFF/Lock When Driving./Lock: Driving, Unlock: IGN Off./Lock When Shifting Out Of P./Lock: Shift From P, Unlock: In P.	Rear body control module (RBCM)

Power door lock system (Using center display)

(See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE .)

Power door lock system (Setting method by operation of door lock switch)

The following setting can be changed by operation of the door lock switch.

Function	Setting contents	Control unit
Auto Door Lock Mode.	Off/Lock When Driving/Lock: Driving, Unlock: IGN Off/Lock When Shifting Out Of P/Lock: Shift From P, Unlock: In P/Lock: Driving, Unlock: In P	Rear body control module (RBCM)

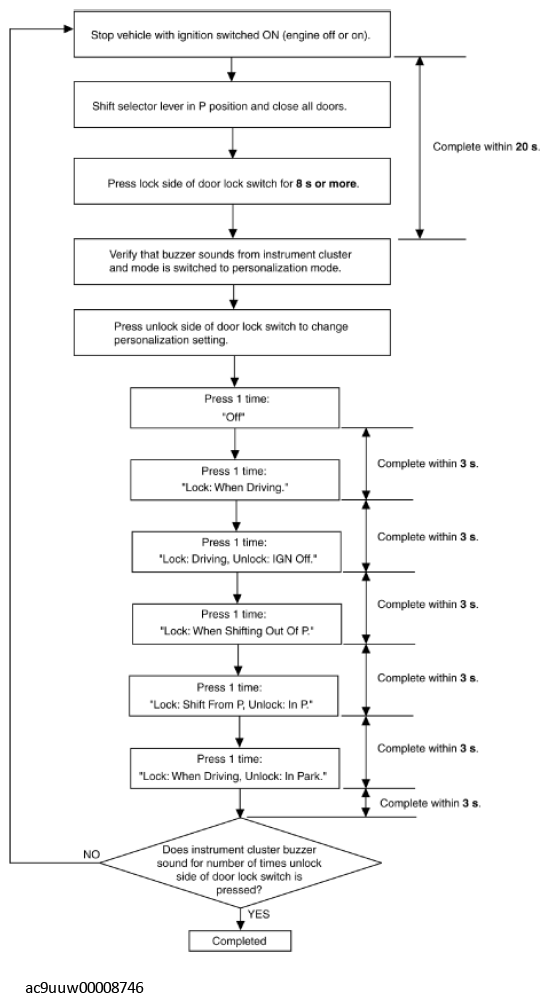

Change the setting for the auto door lock referring to the following procedure:
NOTE:
- If any of the following conditions is met during procedure, the setting change for the auto door lock is stopped.
  - Lock side of the door lock switch is pressed while in the personalization mode.

G11430853

Courtesy of MAZDA MOTORS CORP.
