DTC C1126 11: Parking/Front Side Marker Light Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

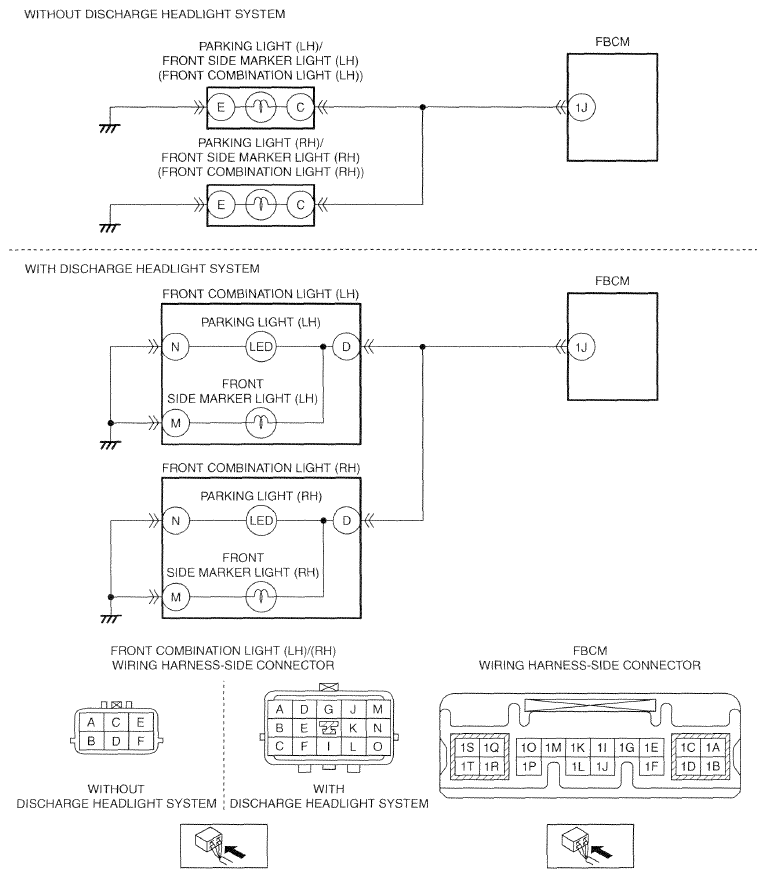

DTC C1126:11 (FRONT BODY CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSES
| Description |
Parking/front side marker light circuit malfunction |
| Detection condition |
- Front body control module (FBCM) detects a short to ground in the parking/front side marker light circuit with the ignition switched ON (engine off or on).
|
| Fail-safe function |
Not applicable |
| Possible cause |
- Parking/front side marker/front turn light bulb (LH) malfunction (Without discharge headlight system)
- Front side marker/front turn light bulb (LH) malfunction (With discharge headlight system)
- Parking/front side marker/front turn light bulb (RH) malfunction (Without discharge headlight system)
- Front side marker/front turn light bulb (RH) malfunction (With discharge headlight system)
- Front body control module (FBCM) connector or terminal malfunction
- Front combination light (LH) connector or terminal malfunction
- Front combination light (RH) connector or terminal malfunction
- Short to ground in wiring harness between the following terminals:
- Without discharge headlight system
- Front combination light (LH) terminal C-Front body control module (FBCM) terminal 1J
- Front combination light (RH) terminal C-Front body control module (FBCM) terminal 1J
- With discharge headlight system
- Front combination light (LH) terminal D-Front body control module (FBCM) terminal 1J
- Front combination light (RH) terminal D-Front body control module (FBCM) terminal 1J
- Parking light (LH) malfunction (With discharge headlight system))
- Parking light (RH) malfunction (With discharge headlight system))
- Front body control module (FBCM) malfunction
|
