Audio Amplifier Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
Remove the following parts:
1. Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
2. Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
Remove the bolts.
Remove the audio amplifier.

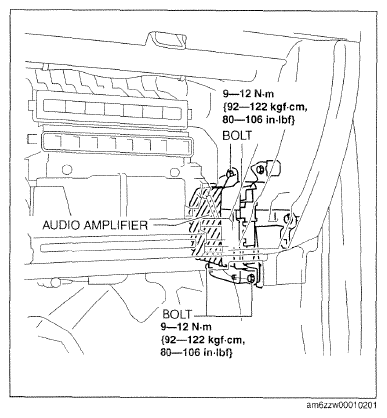

Fig 1: Audio Amplifier And Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Disconnect the connectors.
Install in the reverse order of removal.

Fig 2: Identifying Audio Amplifier Connector
Courtesy of MAZDA MOTORS CORP.
