Passenger-Side Buckle Switch And Seat Weight Sensor Control Module Connector End View

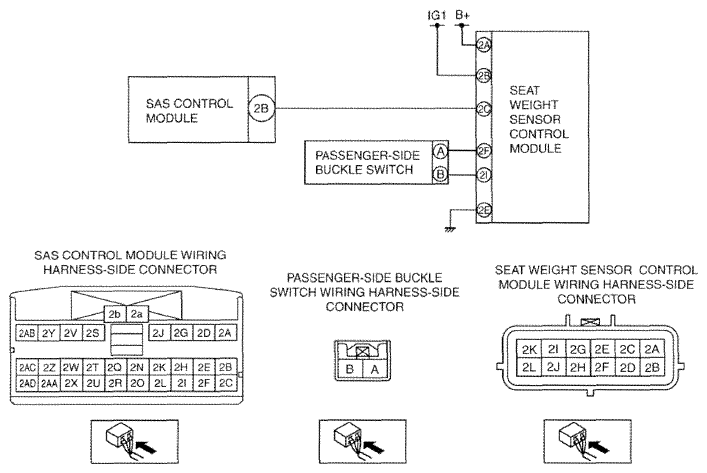

Fig 1: Passenger-Side Buckle Switch And Seat Weight Sensor Control Module Connector End View
G09783460Courtesy of MAZDA MOTORS CORP.
