Discharge Headlight Control Module Removal/Installation

CAUTION:

Incorrect servicing of the discharge headlight control module could result in electrical shock. Before servicing the discharge headlight control module, always refer to the "DISCHARGE HEADLIGHT SERVICE WARNINGS ." (See DISCHARGE HEADLIGHT SERVICE WARNINGS .)

Disconnect the negative battery cable.
Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
Remove the front combination light. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)

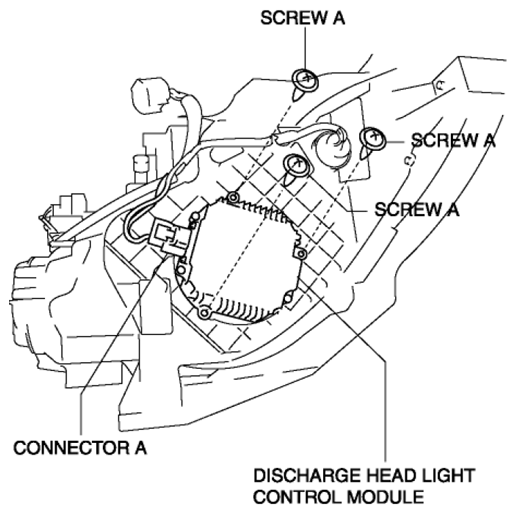

Remove the screws A.

Fig 1: Identifying Discharge Headlight Control Module Connector A And Screw A
Disconnect the connector A.

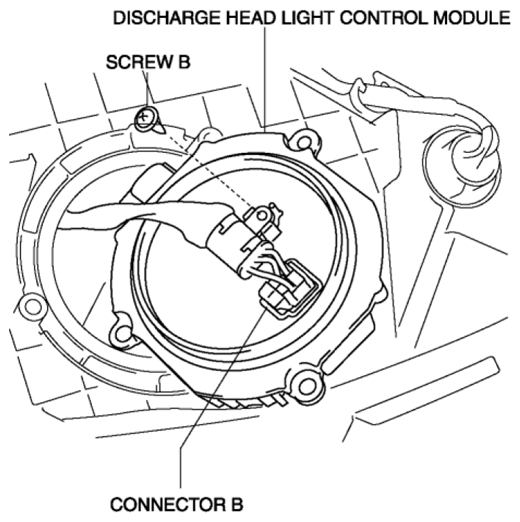

Remove the screws B.

Fig 2: Identifying Discharge Headlight Control Module Connector B And Screw B
Disconnect the connector B.
Remove the discharge headlight control module.

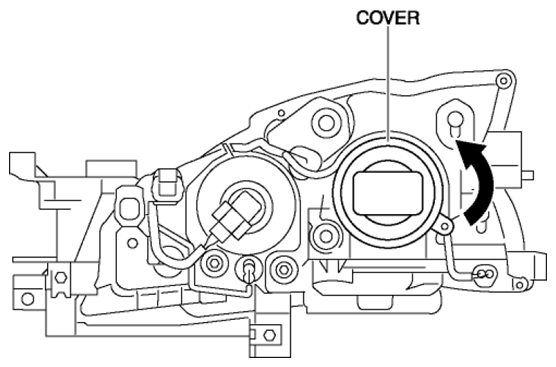

Remove the cover.

Fig 3: Discharge Headlight Control Module Cover

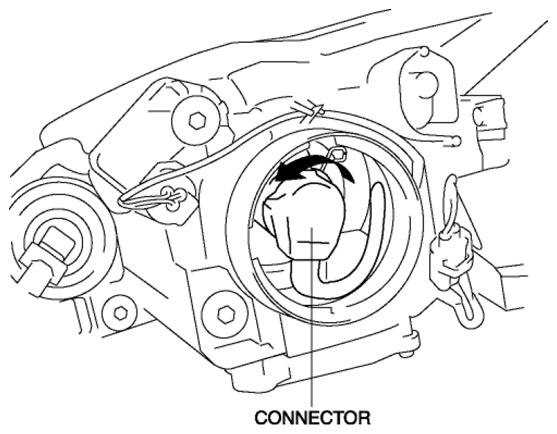

Rotate the connector in the direction of the arrow shown in the figure to remove it.

Fig 4: Rotating Discharge Headlight Control Module Connector

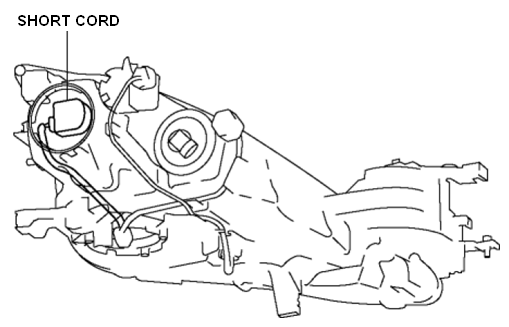

Remove the short cord.

Fig 5: Identifying Short Cord
Install in the reverse order of removal.
