Coil Antenna Removal/Installation [Advanced Keyless Entry And Push Button Start System]

1. Disconnect the negative battery cable.
2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
3. Disconnect the coil antenna connector.
4. Remove the screw.
5. Detach the coil antenna hooks and remove the coil antenna from the steering lock.
6. Install in the reverse order of removal.

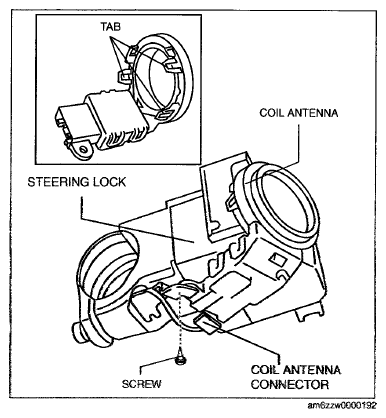

Fig 1: Coil Antenna Connector, Coil Antenna, Steering Lock, Screw And Tabs

Courtesy of MAZDA MOTORS CORP.
