Control System Location Index [MZI-3.7]

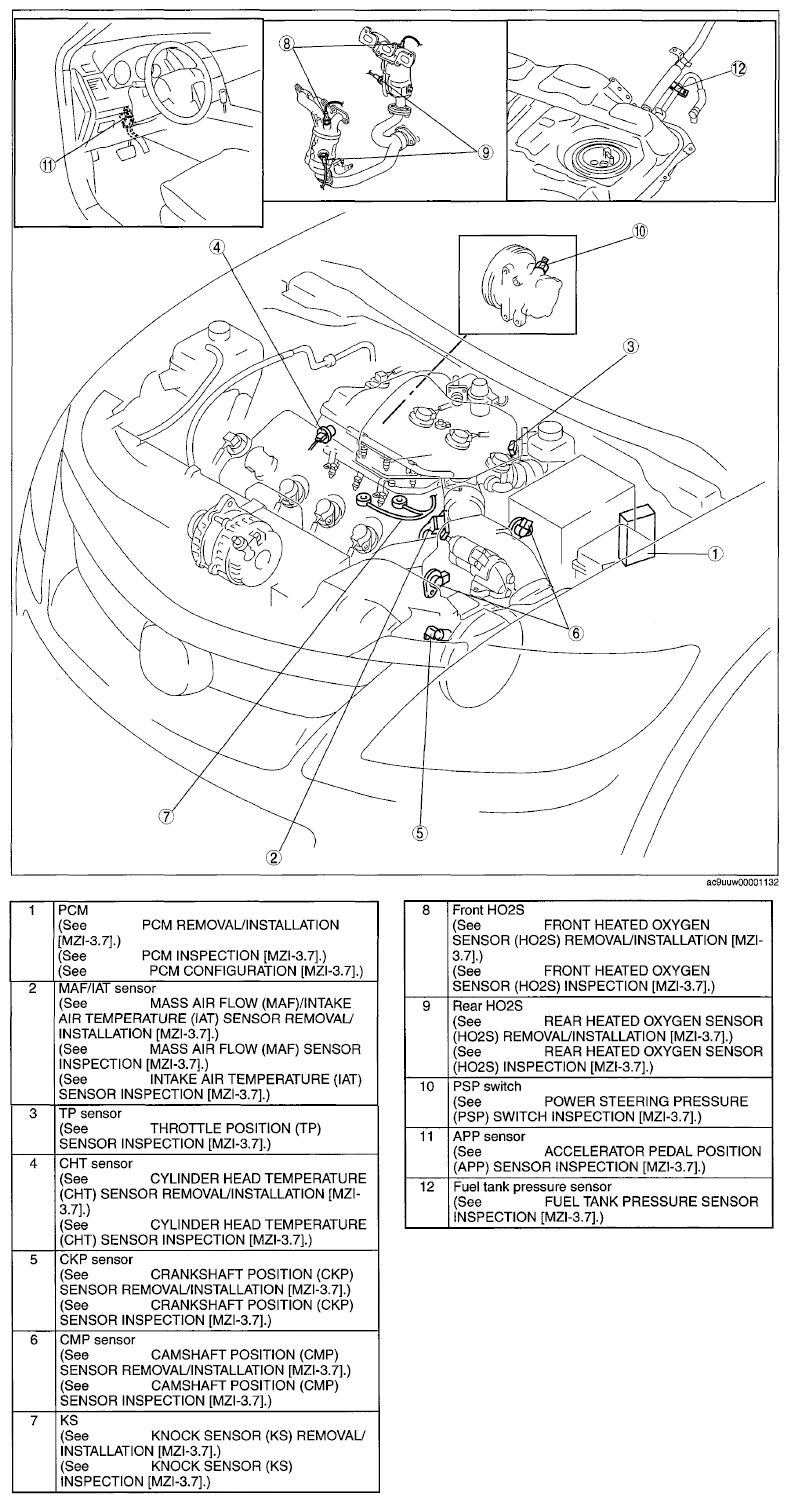

Fig 1: Identifying Control System Components Location
G06727593Courtesy of MAZDA MOTORS CORP.
