Front Door

  1. Half open the door glass.
  2. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] .)
  3. Disconnect the negative battery cable.
  4. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  5. Remove the bolts.
  6. Remove the power window motor from the power window regulator drum.
  7. Disconnect the power window motor connector.
  8. Install in the reverse order of removal.
    NOTE:
    • When installing the power window motor to the power window regulator drum, the drum housing tabs may detach from the door module panel. If this happens, insert a hand through the service hole to engage the drum housing tabs, and install the power window motor to the drum while supporting the drum housing.

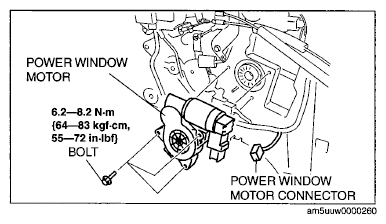

      Fig 1: Power Window Motor And Connector With Torque Specifications
      G06762272Courtesy of MAZDA MOTORS CORP.
