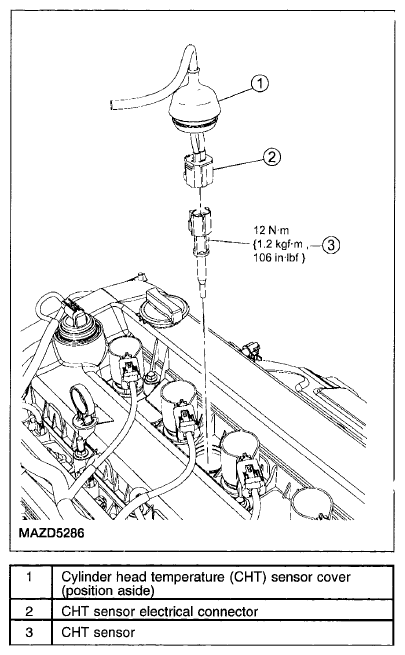

Cylinder Head Temperature (CHT) Sensor Removal/Installation - 2.5L
- Detach the cylinder head temperature (CHT) sensor cover and position aside.
- Disconnect the CHT sensor electrical connector.
- Remove and discard the CHT sensor.
- To install, tighten to 12 N.m {1.2 kgf.m, 106 in.lbf}.
- To install, reverse the removal procedure.
