DTC P2504 [LF]: Notes
DTC P2504 (LF) DETECTION CONDITION AND POSSIBLE CAUSE
| DTC P2504 |
Charging system voltage high input |
| DETECTION CONDITION |
- The PCM judges the generator output voltage is above 18.5 V
or battery voltage is above 16.0 V
during the engine running.
Diagnostic support note
- This is a continuous monitor (other).
- The MIL does not illuminate.
- FREEZE FRAME DATA (Mode 2/Mode 12) is available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- Generator connector or terminals malfunction
- PCM connector or terminals malfunction

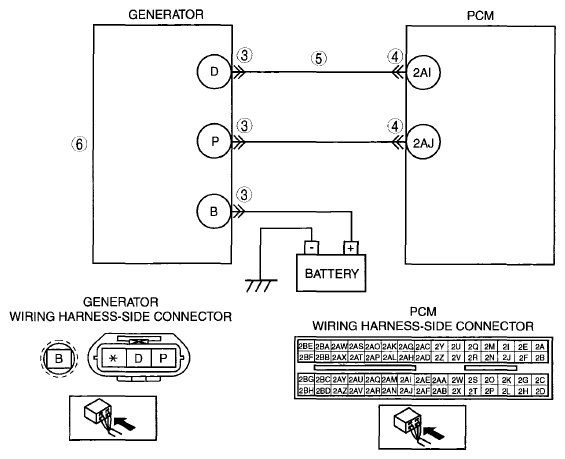

- Short to power supply in wiring harness between generator terminal D and PCM terminal 2AI
- Generator malfunction
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
