No Power In Acc

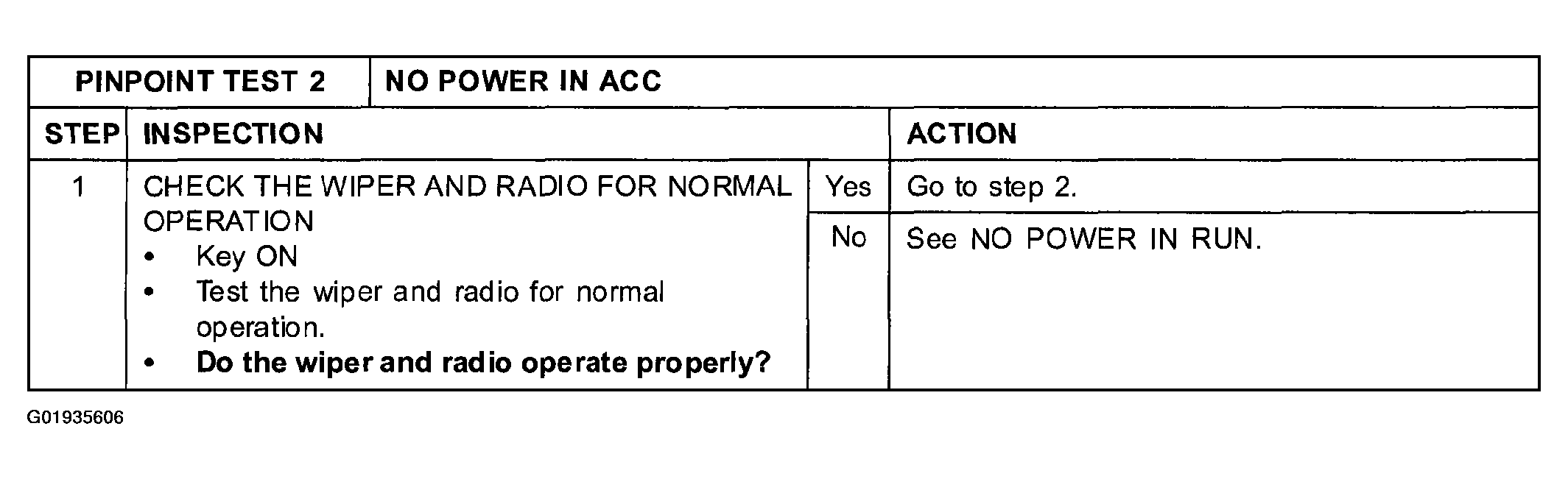

Fig 1: Pinpoint Test 2 - No Power In ACC Inspection Table (Step 1)

Courtesy of MAZDA MOTORS CORP.

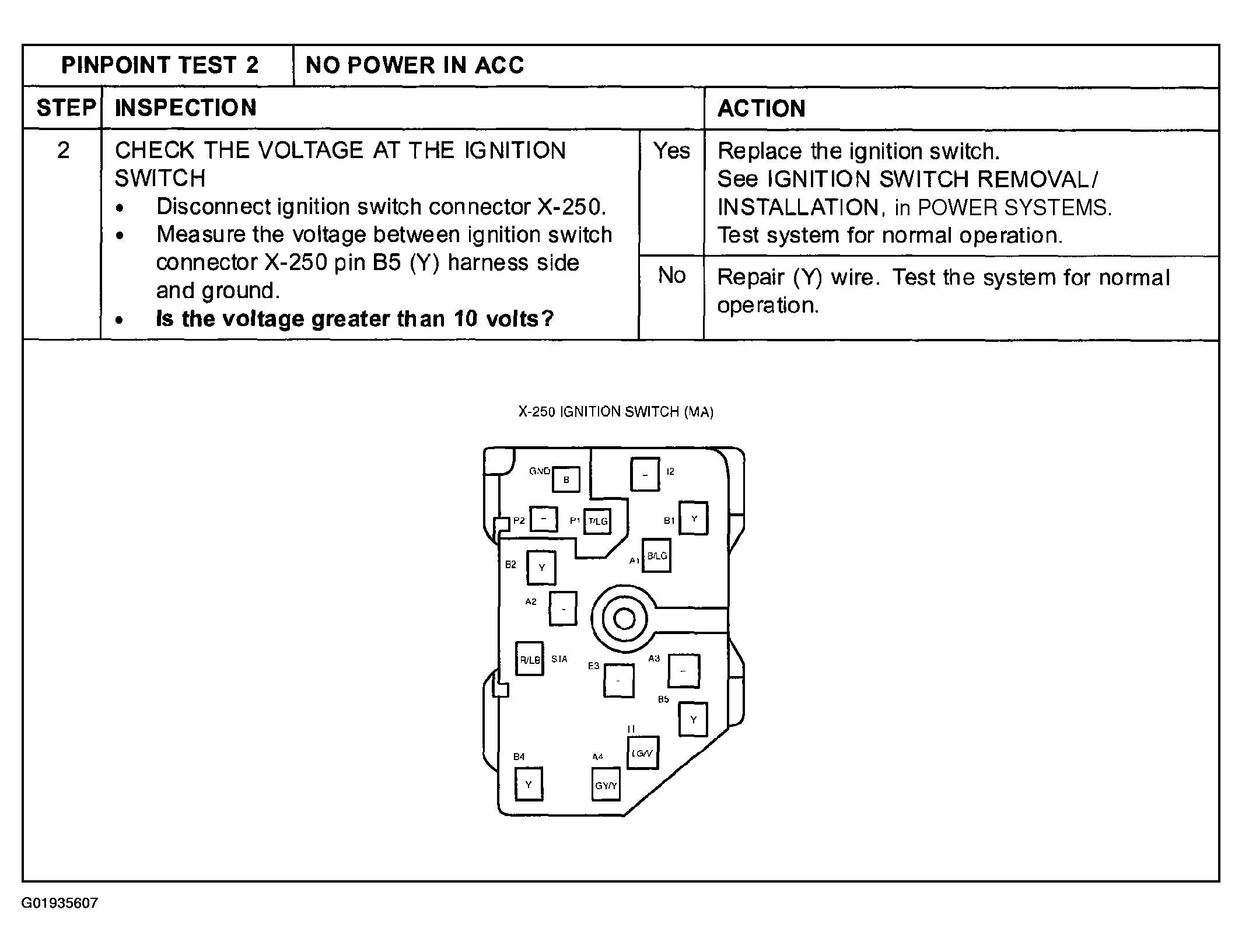

Fig 2: Pinpoint Test 2 - No Power In ACC Inspection Table (Step 2)

Courtesy of MAZDA MOTORS CORP.
