Cam Ring Assembly Note

  1. Install the cam ring with the identification mark facing downward.

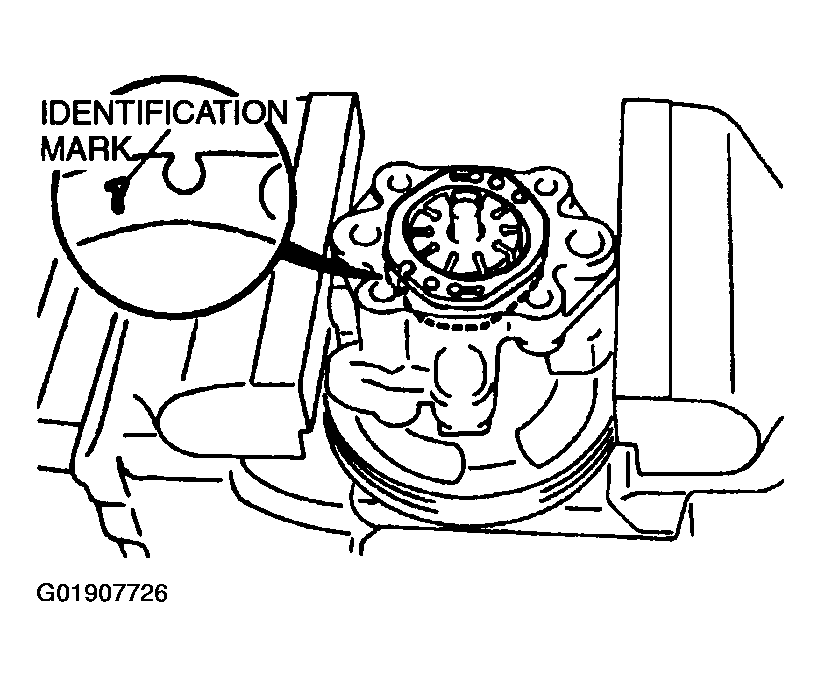

    Fig 1: Installing Cam Ring With Identification Mark Facing Downward
    G01907726Courtesy of MAZDA MOTORS CORP.
