Section 249 (Manual Transaxle Clutch)
>>
Clutch Unit Removal/Installation
>>
Clutch Cover Installation Note
>>
G35M-R manual transaxle models
G35M-R manual transaxle models
WARNING:
This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
Install the
SSTs.
Tighten the bolts evenly and gradually in a crisscross pattern.
Tightening torque 25-33 N.m {2.6-3.3 kgf.m, 19-24 ft.lbf}

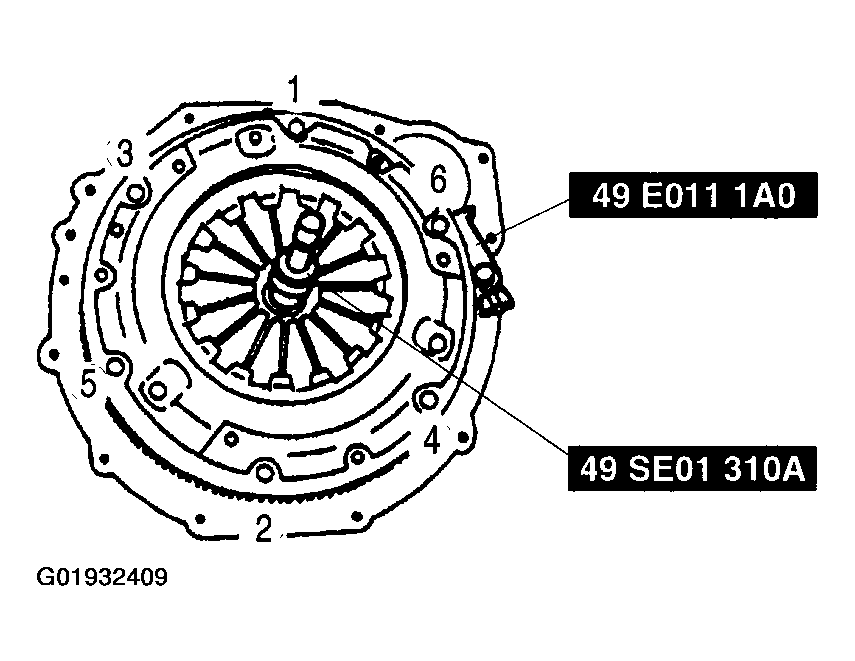

Fig 1: Installing Clutch Cover (G35M-R)
Courtesy of MAZDA MOTORS CORP.
