Wiper and Washer System - Exploded View
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

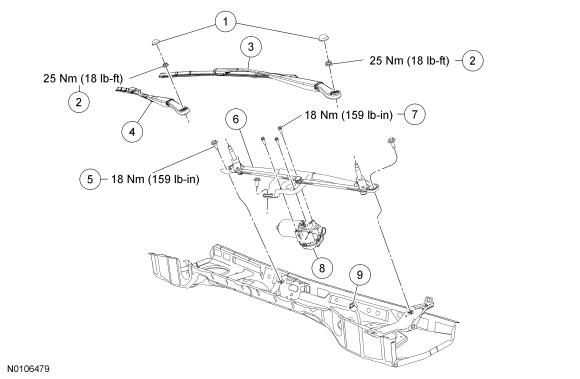

Front Wipers
| Item | Part Number | Description |
|---|---|---|
| 1 | 17C526 | Wiper pivot arm nut covers |
| 2 | W708841 | Wiper pivot arm nuts (2 required) |
| 3 | 17527 | LH wiper arm |
| 3 | 17528 | LH wiper blade |
| 4 | 17526 | RH wiper arm |
| 4 | 17528 | RH wiper blade |
| 5 | N806528 | Wiper mounting arm and pivot shaft bolt (3 required) |
| 6 | 17566 | Wiper mounting arm and pivot shaft assembly |
| 7 | - | Wiper motor bolt (part of 17508) (3 required) |
| 8 | 17508 | Wiper motor |
| 9 | 14290 | Electrical connector |

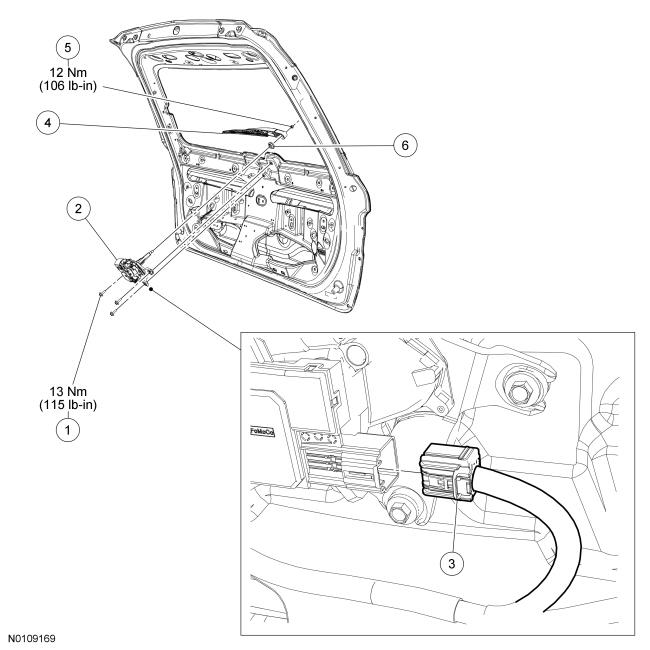

Rear Wiper
| Item | Part Number | Description |
|---|---|---|
| 1 | N807658 | Rear window wiper motor bolt (3 required) |
| 2 | 17508 | Rear window wiper motor |
| 3 | 14A583 | Rear window wiper motor electrical connector |
| 4 | 17526 | Rear window wiper pivot arm |
| 4 | 17528 | Rear window wiper blade |
| 5 | W708312 | Rear window wiper pivot arm nut |
| 6 | 17C412 | Rear window wiper motor seal |
- For additional information, refer to the procedures.
