Headlamp Control Module (HCM) Connector End View (C1600)

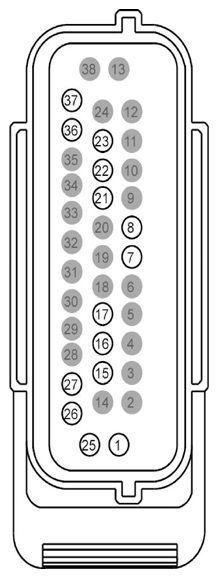

Fig 1: Headlamp Control Module Connector End View (C1600)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBB92 (GN-WH)	20	FUSE - 92 OR CIRCUIT BREAKER
2	*	*	Not Used
3	*	*	Not Used
4	*	*	Not Used
5	*	*	Not Used
6	*	*	Not Used
7	VDB05 (WH)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
8	VDB04 (WH-BU)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
9	*	*	Not Used
10	*	*	Not Used
11	*	*	Not Used
12	*	*	Not Used
13	*	*	Not Used
14	*	*	Not Used
15	CLF52 (WH)	20	CTRL MOD. - HEADLAMP # ADAPTIVE LIGHTING STEPPER MOTOR SA2 LEFT (SM DBL SA2 LEFT)
16	CLF50 (BN-VT)	20	CTRL MOD. - HEADLAMP # ADAPTIVE LIGHTING STEPPER MOTOR SA1 LEFT (SM DBL SA1 LEFT) +
17	DLF50 (BK)	20	CTRL MOD. - HEADLAMP # ADAPTIVE LIGHTING STEPPER MOTOR SA1 LEFT (SM DBL SA1 LEFT) D
18	*	*	Not Used
19	*	*	Not Used
20	*	*	Not Used
21	DLF45 (BK)	20	CTRL MOD. - HEADLAMP # ADAPTIVE LIGHTING STEPPER MOTOR SA1 RIGHT (SM DBL SA1 RIGHT) D
22	CLF45 (VT-GY)	20	CTRL MOD. - HEADLAMP # ADAPTIVE LIGHTING STEPPER MOTOR SA1 RIGHT (SM DBL SA1 RIGHT) +
23	CLF47 (BU-GN)	20	CTRL MOD. - HEADLAMP # ADAPTIVE LIGHTING STEPPER MOTOR SB1 RIGHT (SM DBL SB1 RIGHT)
24	*	*	Not Used
25	GD120 (BK-GN)	20	GROUND - FENDER FRONT LEFT
26	CLF51 (GY)	20	CTRL MOD. - HEADLAMP # ADAPTIVE LIGHTING STEPPER MOTOR SB1 LEFT (SM DBL SB1 LEFT)
27	CLF53 (BN-WH)	20	CTRL MOD. - HEADLAMP # ADAPTIVE LIGHTING STEPPER MOTOR SB2 LEFT (SM DBL SB2 LEFT)
28	*	*	Not Used
29	*	*	Not Used
30	*	*	Not Used
31	*	*	Not Used
32	*	*	Not Used
33	*	*	Not Used
34	*	*	Not Used
35	*	*	Not Used
36	CLF46 (YE-GY)	20	CTRL MOD. - HEADLAMP # ADAPTIVE LIGHTING STEPPER MOTOR SA2 RIGHT (SM DBL SA2 RIGHT)
37	CLF48 (GN-BN)	20	CTRL MOD. - HEADLAMP # ADAPTIVE LIGHTING STEPPER MOTOR SB2 RIGHT (SM DBL SB2 RIGHT)
38	*	*	Not Used
