Fuel Rail and Fuel Injector - Exploded View

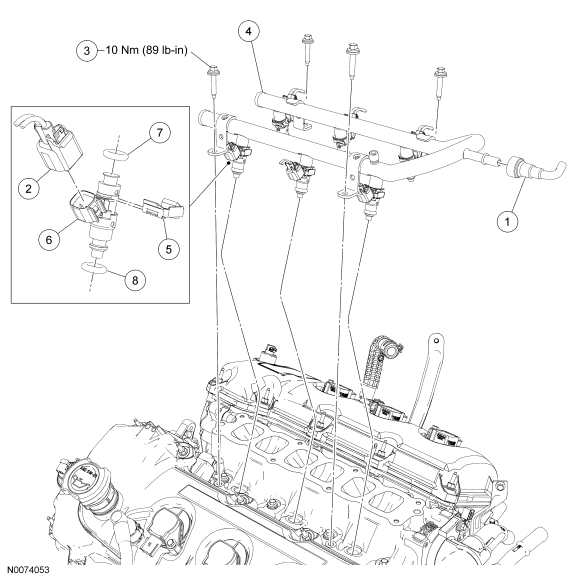

Fig 1: Exploded View Of Fuel Rail & Fuel Injector With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	9J285	Fuel tube-to-fuel rail spring lock coupling
2	14A464	Fuel injector electrical connector (6 required) (part of 12B637)
3	W713443	Fuel rail bolt (4 required)
4	9F792	Fuel rail
5	9N976	Fuel injector clip (6 required)
6	9F593	Fuel injector
7	9229	Upper fuel injector O-ring seal (6 required)
8	9229	Lower fuel injector O-ring seal (6 required)

1. For additional information, refer to the procedures.
