Home >> Lexus >> 2021 >> RX 450h Base >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Infotainment >> Navigation System (Diagnostics - Symptom Tests (2 Of 2) >> Navigation System >> USB Audio System Recognition/Play Error [08/2019 - ] >> Wiring Diagram

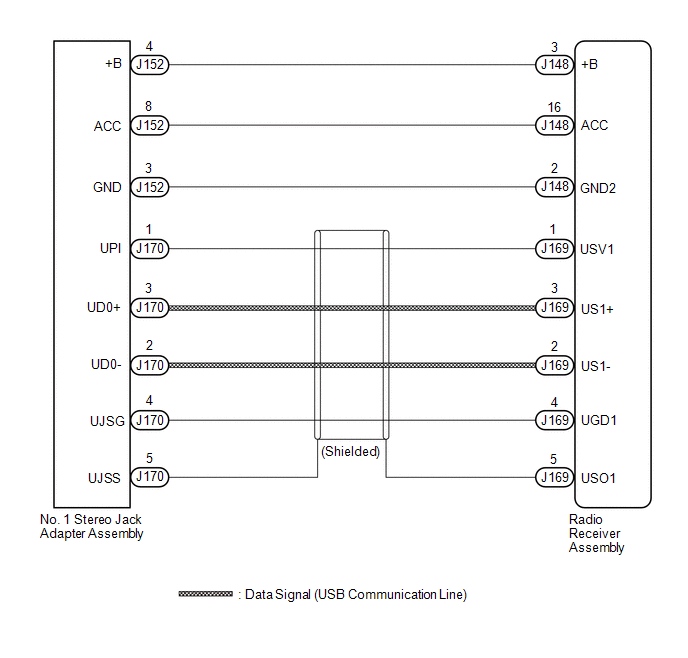

USB Audio System Recognition/Play Error [08/2019 - ]: Wiring Diagram

GTY959693

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
