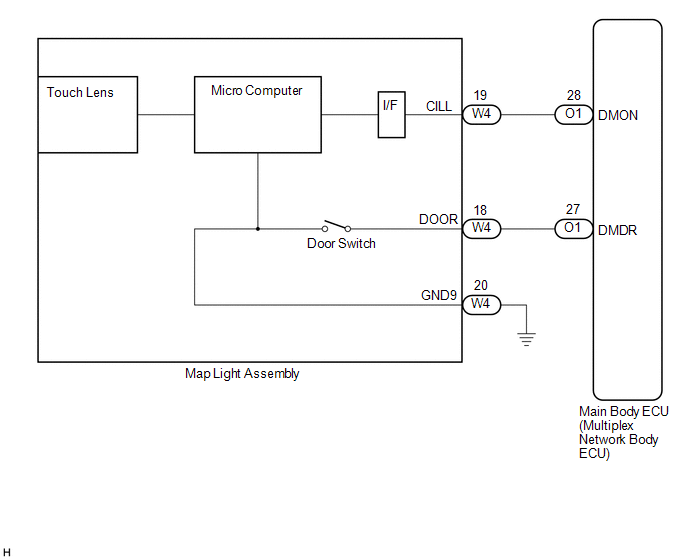

Interior Light Switch Signal Circuit [09/2014 - ]: Wiring Diagram

GTY517486

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
