Installation [10/2018 - ]: Procedure

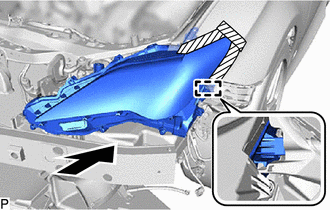

1. Engage the guide to temporarily install the headlight assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install the headlight assembly with the 2 bolts and screw.

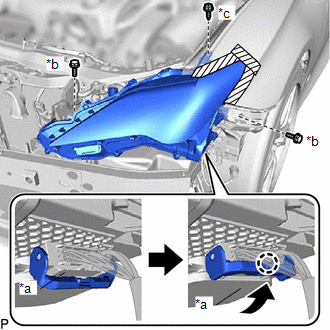

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Connector Lock Lever
   *b	Bolt
   *c	Screw

   Bolt

   Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

3. Connect the connector and raise the connector lock lever to engage the claw and lock the connector as shown in the illustration.
4. Remove the protective tape.

1. Engage the guide as indicated by the arrows, in the order shown in the illustration.

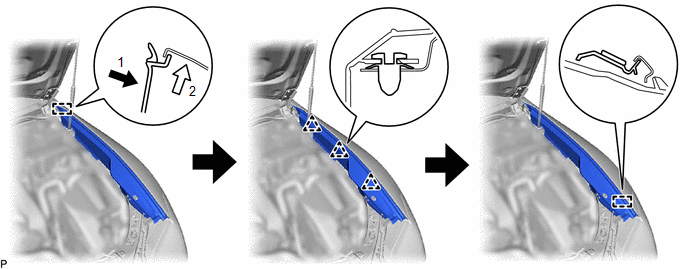

   Fig 1: Upper Front Fender Protector Clips Engagement Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 3 clips.
3. Engage the guide to install the upper front fender protector.

Refer to INSTALLATION [10/2018 - 10/2022] , or refer to INSTALLATION [10/2022 - ]

Refer to INITIALIZATION [10/2018 - ]

Refer to ADJUSTMENT [10/2018 - ]
