Removal [12/2017 - ]: Procedure

  1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY (for 2WD)

    Refer to PROCEDURE - Step 15 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 15 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 15 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 15 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 15 [10/2023 - ]

  2. REMOVE TRANSMISSION UNDER COVER (for 2WD)

    Refer to PROCEDURE - Step 16 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 16 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 16 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 16 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 16 [10/2023 - ]

  3. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY (for 2WD)

    Refer to PROCEDURE - Step 17 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 17 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 17 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 17 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 17 [10/2023 - ]

  4. REMOVE FRONT SUSPENSION MEMBER BRACE (for 2WD)

    Refer to PROCEDURE - Step 18 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 18 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 18 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 18 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 18 [10/2023 - ]

  5. REMOVE STRUT BAR BRACKET SUPPORT SUB-ASSEMBLY (for 2WD)

    Refer to PROCEDURE - Step 19 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 19 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 19 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 19 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 19 [10/2023 - ]

  6. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 20 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 20 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 20 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 20 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 20 [10/2023 - ]

  7. REMOVE TRANSMISSION UNDER COVER (for AWD)

    Refer to PROCEDURE - Step 21 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 21 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 21 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 21 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 21 [10/2023 - ]

  8. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 22 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 22 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 22 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 22 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 22 [10/2023 - ]

  9. REMOVE FRONT SUSPENSION MEMBER BRACE (for AWD)

    Refer to PROCEDURE - Step 23 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 23 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 23 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 23 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 23 [10/2023 - ]

  10. REMOVE STRUT BAR BRACKET SUPPORT SUB-ASSEMBLY (for AWD)

    Refer to PROCEDURE - Step 24 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 24 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 24 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 24 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 24 [10/2023 - ]

  11. REMOVE OIL FILLER CAP ASSEMBLY

    Refer to PROCEDURE - Step 1 [12/2017 - 11/2021] , or refer to PROCEDURE - Step 1 [11/2021 - ]

  12. DRAIN ENGINE OIL

    Refer to PROCEDURE - Step 4 [12/2017 - 11/2021] , or refer to PROCEDURE - Step 4 [11/2021 - ]

  13. REMOVE NO. 2 OIL PAN SUB-ASSEMBLY

    Refer to PROCEDURE - Step 61 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 61 [09/2018 - 10/2020] , or refer to PROCEDURE - Step 57 [10/2020 - ]

  14. REMOVE ENGINE OIL LEVEL SENSOR
    1. For 2WD:

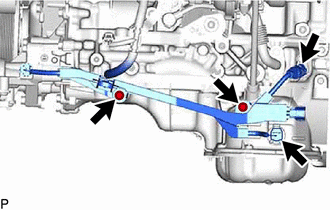

      GTY783130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the crankshaft position sensor connector.
      2. Disconnect the engine oil level sensor connector.
      3. Remove the 2 bolts and disconnect the wire harness.
      4. Remove the clip from the engine oil level sensor.

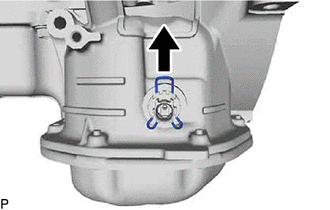

        GTY783132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. Remove the 2 bolts and engine oil level sensor.

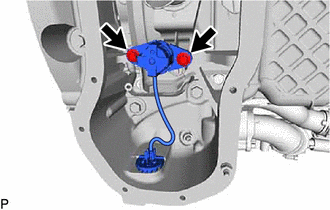

        GTY783133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. For AWD:

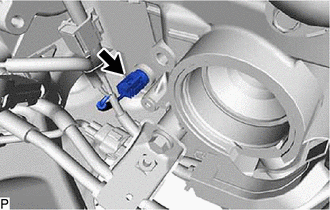

      GTY783134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the engine oil level sensor connector.
      2. Remove the clip from the engine oil level sensor.

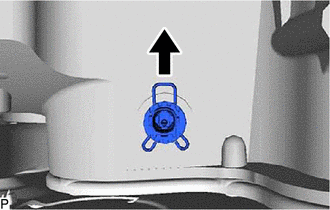

        GTY829028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Remove the 2 bolts and engine oil level sensor.

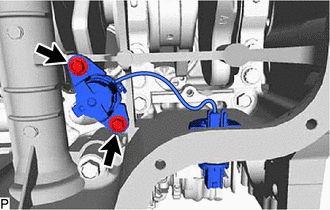

        GTY783126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
