Removal [10/2019 - 08/2021]: Procedure

REMOVE ENGINE ASSEMBLY WITH TRANSAXLE
Refer to REMOVAL [10/2019 - 08/2021]

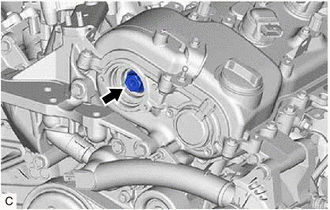

REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 2)
See step 7

SET NO. 1 CYLINDER TO TDC/COMPRESSION

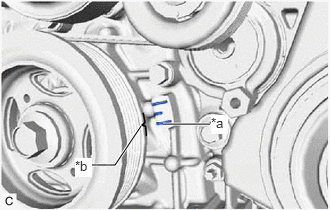

Turn the crankshaft pulley clockwise until its timing mark (cutout) is aligned with the timing mark on the timing chain cover assembly as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Timing Mark
*b	Timing Mark (Cutout)

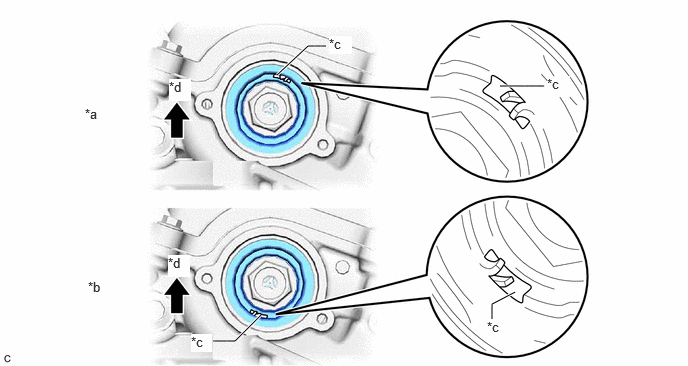

Check that the cutout of the camshaft timing gear assembly is at the top.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Correct	*b	Incorrect
*c	Cutout	*d	Up

HINT:

If the cutout of the camshaft timing gear assembly is not at the top, turn the crankshaft 360° clockwise and align the timing mark (cutout) of the crankshaft pulley with the timing mark on the timing chain cover assembly again.

REMOVE CAMSHAFT TIMING GEAR BOLT

While holding the crankshaft pulley, remove the camshaft timing gear bolt.

NOTE:

If the camshaft timing gear bolt has been struck or dropped, replace it.
Do not turn the crankshaft pulley after removing the camshaft timing gear bolt.
