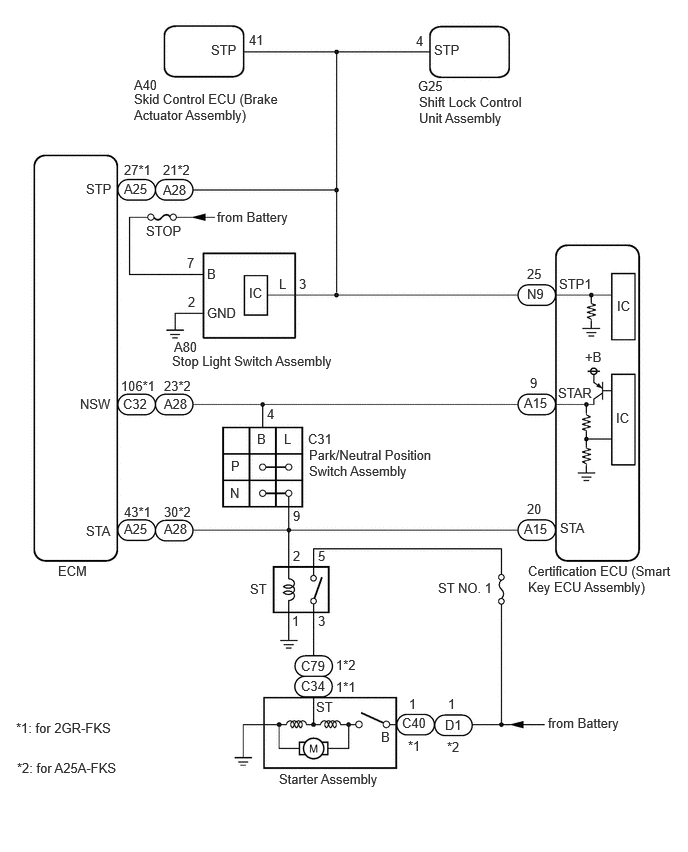

Engine does not Start [08/2021 - 09/2022]: Wiring Diagram

Fig 1: Engine does not Start [08/2021 - 09/2022]

GTY1085227
