Removal [06/2018 - ]: Procedure

  1. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

    Refer to REMOVAL [06/2018 - ]

  2. REMOVE TRANSMISSION REVOLUTION SENSOR (NT)

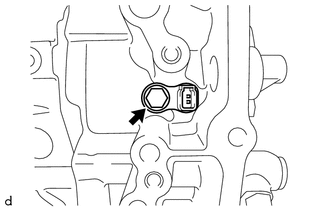

    1. Remove the bolt and transmission revolution sensor (NT) from the automatic transaxle case sub-assembly.
      GTY694192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE TRANSMISSION REVOLUTION SENSOR (NC)

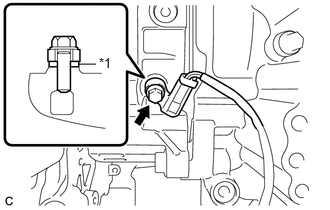

    1. Remove the bolt, spacer and transmission revolution sensor (NC) from the counter drive gear sub-assembly.
      GTY749604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Spacer
