Components [10/2015 - ]

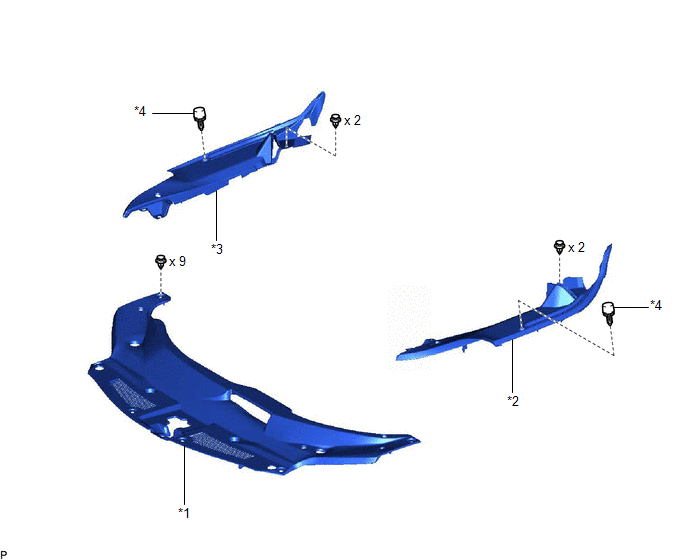

Fig 1: Front Wiper Motor Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	COOL AIR INTAKE DUCT SEAL	*2	FRONT FENDER REINFORCEMENT SUB-ASSEMBLY TOP LH
*3	FRONT FENDER REINFORCEMENT SUB-ASSEMBLY TOP RH	*4	CENTER HOOD CUSHION

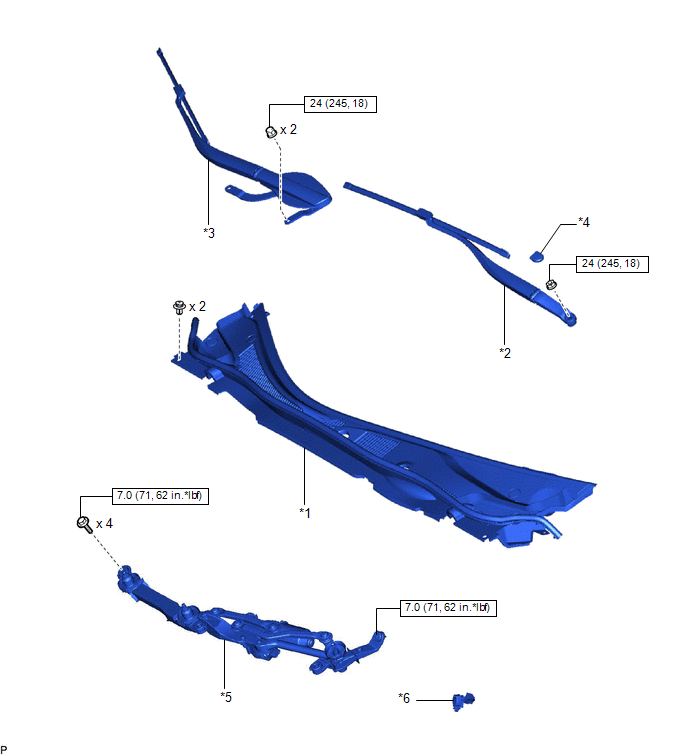

Fig 2: Front Wiper Motor Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY	*2	FRONT WIPER ARM AND BLADE ASSEMBLY LH
*3	FRONT WIPER ARM AND BLADE ASSEMBLY RH	*4	FRONT WIPER ARM HEAD CAP
*5	FRONT WIPER MOTOR AND LINK ASSEMBLY	*6	WIPER MOTOR WIRE
	Nm (kgfcm, ft.*lbf): Specified torque	-	-
