Components [09/2014 - 10/2018]

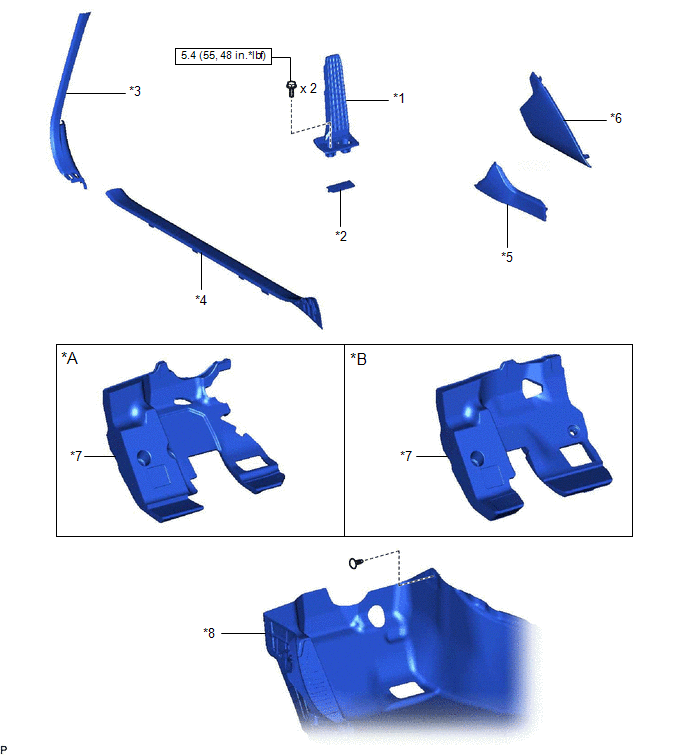

Fig 1: Headlight Leveling ECU Replacement Components With Torque Specifications [09/2014 - 10/2018] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for 2WD | *B | for AWD |
| *1 | ACCELERATOR PEDAL ASSEMBLY | *2 | ACCELERATOR PEDAL PAD |
| *3 | FRONT DOOR OPENING TRIM COVER LH | *4 | FRONT DOOR SCUFF PLATE LH |
| *5 | FRONT NO. 1 CONSOLE BOX INSERT | *6 | INSTRUMENT PANEL FINISH PANEL END LH |
| *7 | NO. 3 DASH PANEL INSULATOR PAD | *8 | FRONT FLOOR CARPET ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

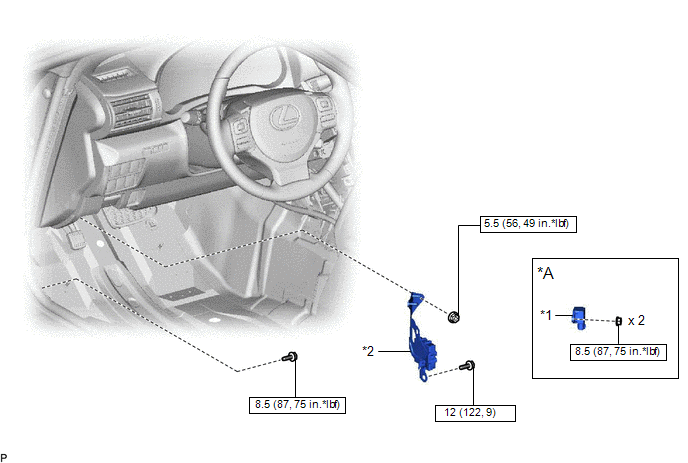

Fig 2: Headlight Leveling ECU Replacement Components With Torque Specifications [09/2014 - 10/2018] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ AVS | - | - |
| *1 | ACCELERATION SENSOR | *2 | HEADLIGHT LEVELING ECU ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
