Open In Bus 5 Main Bus Line [09/2015 - ]: Procedure
- CHECK FOR OPEN IN CAN BUS WIRE (CENTRAL GATEWAY ECU - NO. 3 CAN JUNCTION CONNECTOR)
- Disconnect the central gateway ECU connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition E137-15 (CA5H) - E137-16 (CA5L) Cable disconnected from negative (-) battery terminal 108 to 132 Ω TEXT IN ILLUSTRATION*a Front view of wire harness connector
(to Central Gateway ECU)
Result:
OK
REPLACE CENTRAL GATEWAY ECU
Refer to REMOVAL [09/2015 - ] )
Result:
NG
See step 2
- Disconnect the central gateway ECU connector.
- CONNECT CONNECTOR
- Reconnect the E137 central gateway ECU connector.
Result:
NEXT
See step 3
- CHECK FOR OPEN IN CAN BUS WIRE (NO. 1 CAN JUNCTION TERMINAL - NO. 4 CAN JUNCTION CONNECTOR)
- Disconnect the No. 1 CAN junction terminal connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition K57-3 (CANH) - K57-2 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω TEXT IN ILLUSTRATION*a Rear view of wire harness connector
(to No. 1 CAN Junction Terminal)
Result:
OK
REPLACE NO. 1 CAN JUNCTION TERMINAL
Result:
NG
See step 4
- Disconnect the No. 1 CAN junction terminal connector.
- CONNECT CONNECTOR
- Reconnect the K57 No. 1 CAN junction terminal connector.
Result:
NEXT
See step 5
- CHECK FOR OPEN IN CAN BUS WIRE (NO. 3 CAN JUNCTION CONNECTOR)
- Disconnect the No. 3 CAN junction connector.TEXT IN ILLUSTRATION
*a Front view of wire harness connector
(to No. 3 CAN Junction Connector)*b to No. 4 CAN Junction Connector *c to Central Gateway ECU - - - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition Connect to E159-3 (CANH) - E159-13 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω No. 4 CAN junction connector E159-5 (CANH) - E159-15 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω Central gateway ECU RESULTResult Proceed to OK A NG (Central gateway ECU CAN main wire) B NG (No. 4 CAN junction connector CAN main wire) C
Result:
A
REPLACE NO. 3 CAN JUNCTION CONNECTOR
Result:
B
REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (NO. 3 CAN JUNCTION CONNECTOR - CENTRAL GATEWAY ECU)
Result:
C
See step 6
- Disconnect the No. 3 CAN junction connector.
- CONNECT CONNECTOR
- Reconnect the E159 No. 3 CAN junction connector.
Result:
NEXT
See step 7
- CHECK FOR OPEN IN CAN BUS WIRE (NO. 4 CAN JUNCTION CONNECTOR)

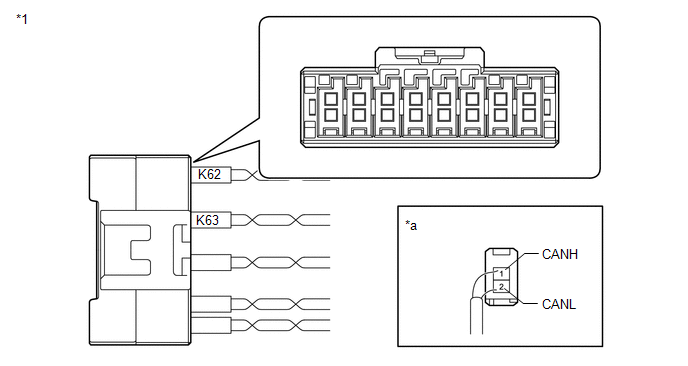

- Disconnect the No. 4 CAN junction connectors.TEXT IN ILLUSTRATION
*1 No. 4 CAN Junction Connector - - *a Rear view of wire harness connector
(to No. 4 CAN Junction Connector)- - Code Color (CANH Side) Color (CANL Side) Connect to K62 W B No. 3 CAN Junction Connector K63 SB B No. 1 CAN Junction Terminal - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition K62-1 (CANH) - K62-2 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω K63-1 (CANH) - K63-2 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω RESULTResult Proceed to OK A NG (No. 3 CAN junction connector CAN main wire) B NG (No. 1 CAN junction terminal CAN main wire) C
Result:
A
REPLACE NO. 4 CAN JUNCTION CONNECTOR
Result:
B
REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (NO. 4 CAN JUNCTION CONNECTOR - NO. 3 CAN JUNCTION CONNECTOR)
Result:
C
REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (NO. 4 CAN JUNCTION CONNECTOR - NO. 1 CAN JUNCTION TERMINAL)
- Disconnect the No. 4 CAN junction connectors.
