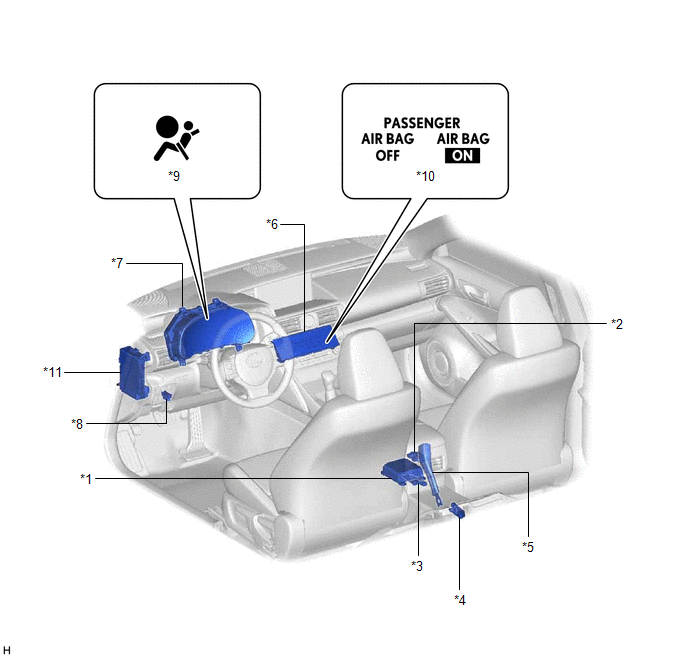

Parts Location [04/2013 - ]: Illustration
| *1 | AIRBAG SENSOR ASSEMBLY | *2 | OCCUPANT DETECTION ECU |
| *3 | FRONT OCCUPANT CLASSIFICATION SENSOR LH (SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY RH) | *4 | REAR OCCUPANT CLASSIFICATION SENSOR LH (SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY RH) |
| *5 | PASSENGER SIDE BUCKLE SWITCH (FRONT SEAT INNER BELT ASSEMBLY RH) | *6 | AIR CONDITIONING CONTROL ASSEMBLY |
| *7 | COMBINATION METER ASSEMBLY | *8 | DLC3 |
| *9 | SRS WARNING LIGHT | *10 | PASSENGER AIRBAG ON/OFF INDICATOR |
| *11 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - A/BAG-IG2 FUSE - ODS FUSE - IG1 NO. 3 FUSE |
- | - |
