Vehicle Speed Signal Circuit between Stereo Component Amplifier and Combination Meter (07/2015 - 08/2016): Procedure

1. Check the output waveform.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Remove the combination meter assembly with the connector(s) still connected.
   2. Connect an oscilloscope to terminal H14-19 (+S) and body ground.
   3. Turn the engine switch on (IG).
   4. Turn a wheel slowly.
   5. Check the signal waveform according to the condition(s) in the table below.

      Item	Condition
      Measurement terminal	H14-19 (+S) - Body ground
      Tool setting	5 V/DIV., 20 ms./DIV.
      Vehicle condition	Wheel being rotated

      OK

      The waveform is similar to that shown in the illustration.

      HINT:

      When the system is functioning normally, one wheel revolution generates 4 pulses. As the vehicle speed increases, the width indicated by (A) in the illustration narrows.

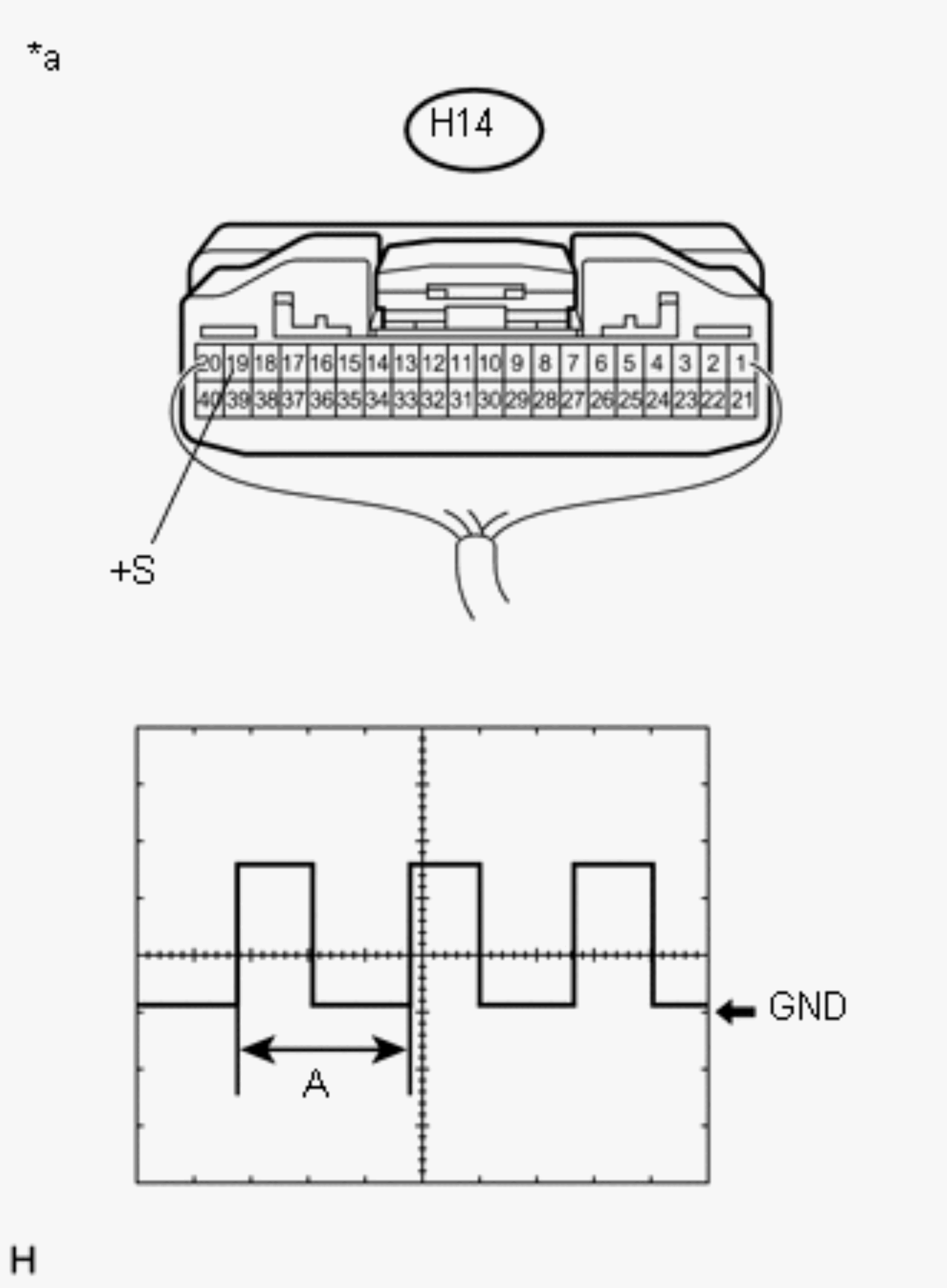

      TEXT IN ILLUSTRATION



      *a	Component with harness connected (Combination Meter Assembly)

Result:  NG

NG

GO TO METER / GAUGE SYSTEM

(Refer to Speed Signal Circuit (07/2015 -) )

Result:  OK

OK

See step  2

1. Check the input waveform.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Remove the stereo component amplifier assembly with the connector(s) still connected.
   2. Connect an oscilloscope to terminal H99-17 (SPD) and body ground.
   3. Turn the engine switch on (IG).
   4. Turn a wheel slowly.
   5. Check the signal waveform according to the condition(s) in the table below.

      Item	Condition
      Measurement terminal	H99-17 (SPD) - Body ground
      Tool setting	5 V/DIV., 20 ms./DIV.
      Vehicle condition	Wheel being rotated

      OK

      The waveform is similar to that shown in the illustration.

      HINT:

      When the system is functioning normally, one wheel revolution generates 4 pulses. As the vehicle speed increases, the width indicated by (A) in the illustration narrows.

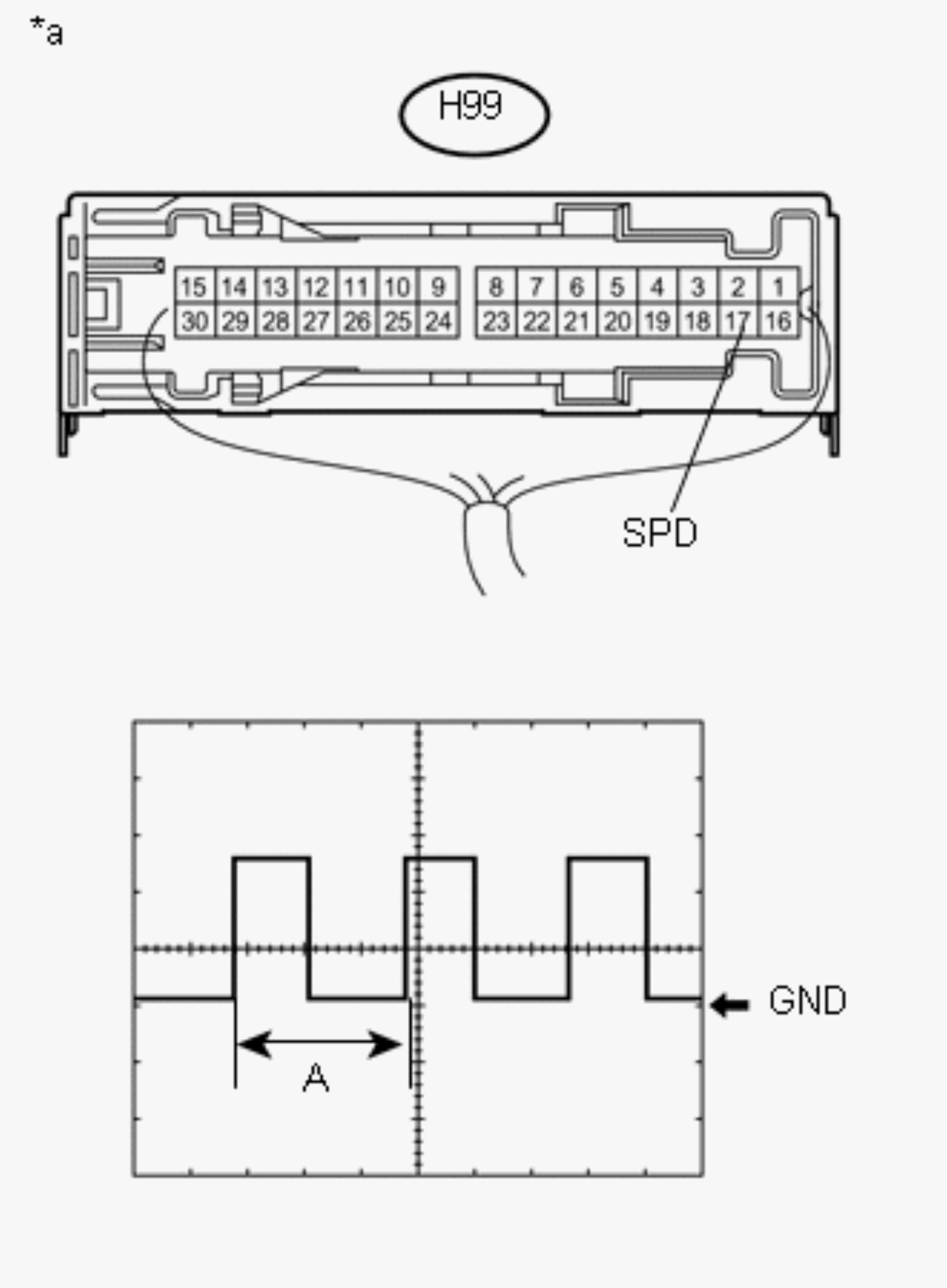

      TEXT IN ILLUSTRATION



      *a	Component with harness connected (Stereo Component Amplifier Assembly)

Result:  OK

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

(Refer to PROBLEM SYMPTOMS TABLE (07/2015 - 08/2016) )

Result:  NG

NG

See step  3

1. Disconnect the H99 stereo component amplifier assembly connector.
2. Disconnect the H114 junction connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H99-17 (SPD) - H114-14	Always	Below 1 Ω

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:  OK

OK

See step  4

1. Disconnect the H14 combination meter assembly connector.
2. Disconnect the H115 junction connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H14-19 (+S) - H115-21	Always	Below 1 Ω

Result:  OK

OK

REPLACE JUNCTION CONNECTOR

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
