Removal [07/2015 - ]: Procedure

  1. REMOVE CRANKSHAFT POSITION SENSOR

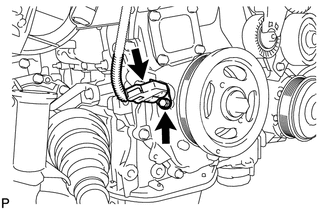

    GTY314654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the crankshaft position sensor connector.
    2. Remove the bolt and crankshaft position sensor.
